It’s official. The S650 GT will have a new coyote, the gen 4 coyote.

Not much info was revealed at the launch event, but here is what we know:
The GT will have 480+hp.
The Dark Horse will have about 500hp.

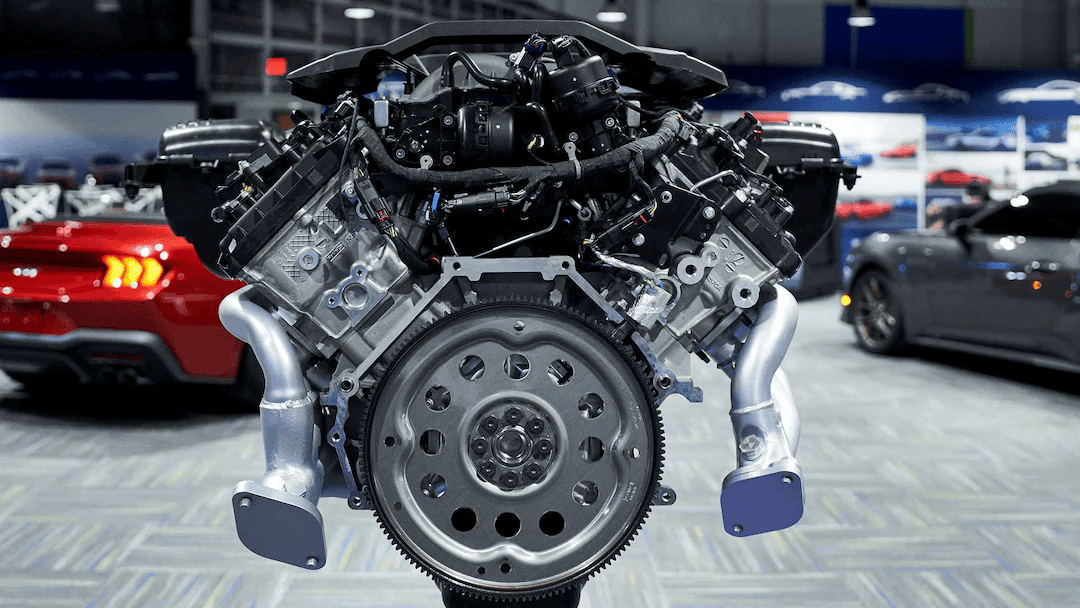

The Gen4 Coyote will have dual throttle bodies and a dual intake system.

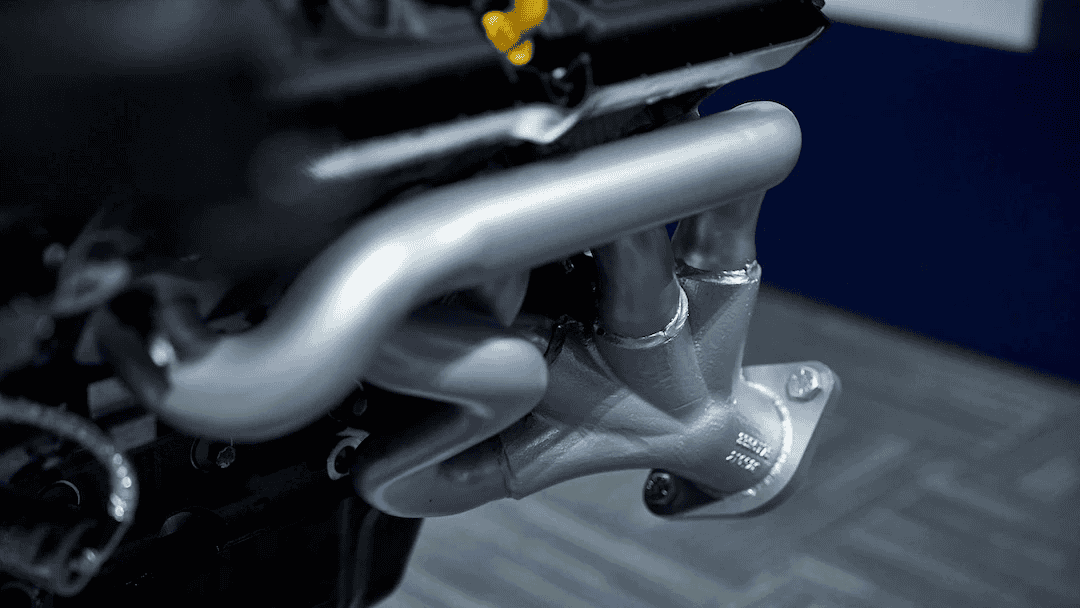

It will have a revised 4 into 1 exhaust manifold.

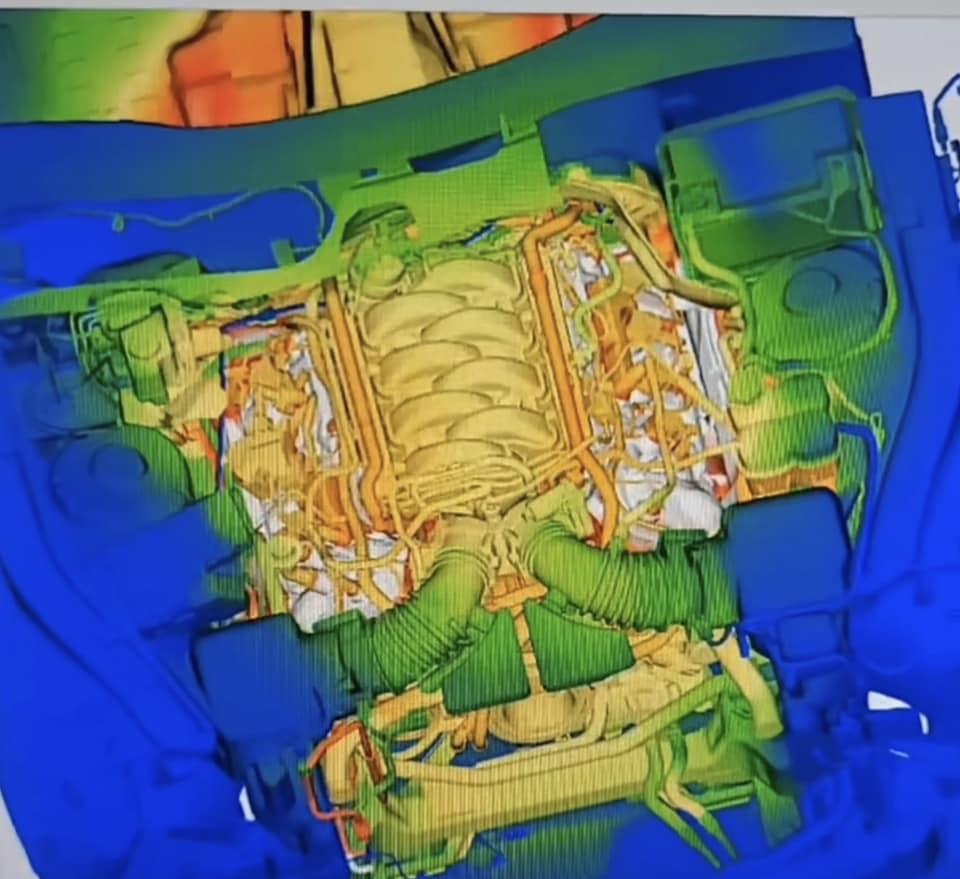

The Gen4 Coyote uses a new and improved cooling system to better cool the motor.

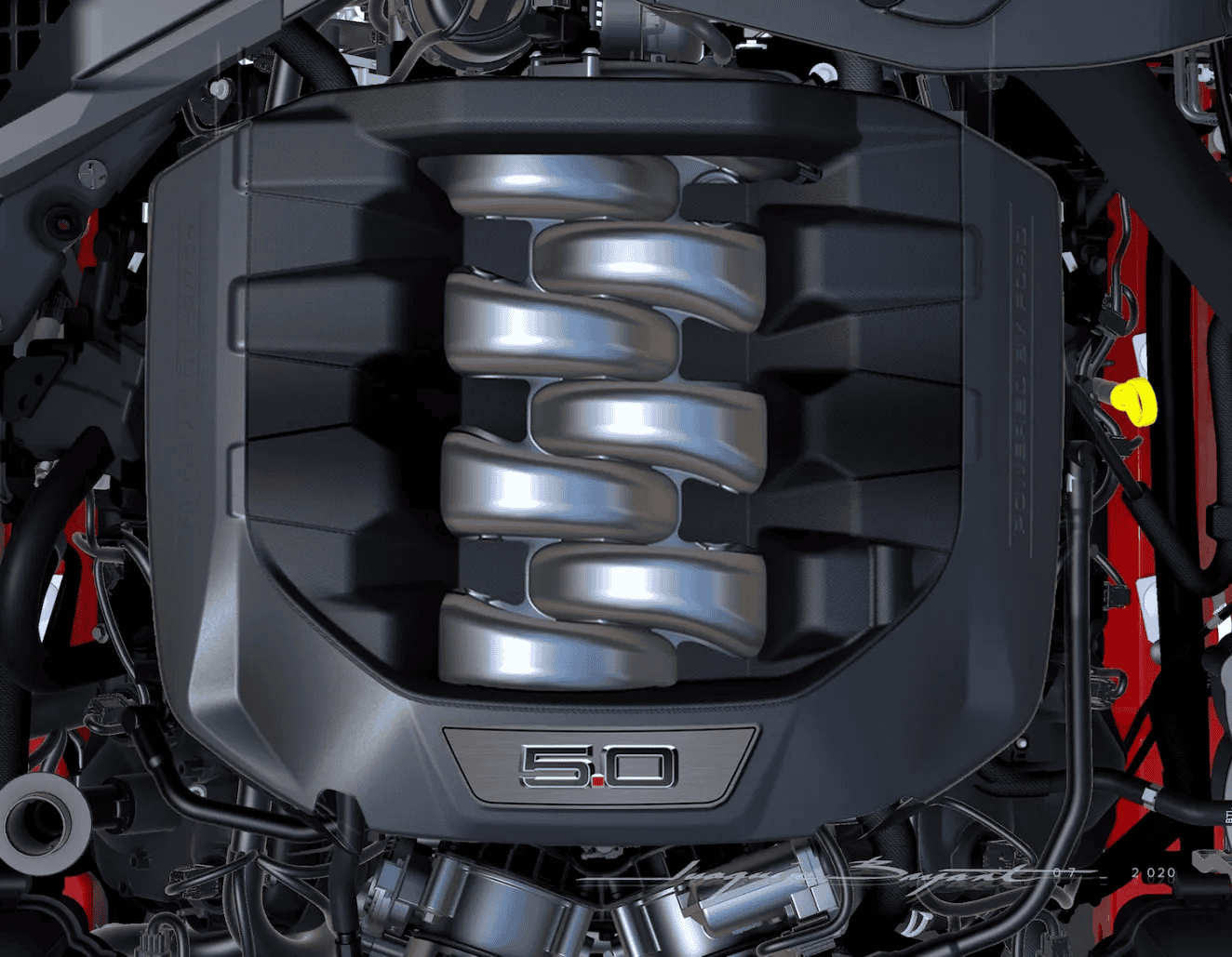

It will also feature a new engine cover and a steel oil pan.

The Gen4 Coyote will have revised wiring, fuel, and brake line routing for a neater look according to Ford.

Dark Horse Info:
The Dark Horse will have upgraded connecting rods from the current predator engines and a different crankshaft (most likely just balanced differently for the different rods). It also appears the darkhorse will have a different block than the standard gen4 coyote. Parts website shows no difference for the camshafts but websites claim the darkhorse has upgraded cams.

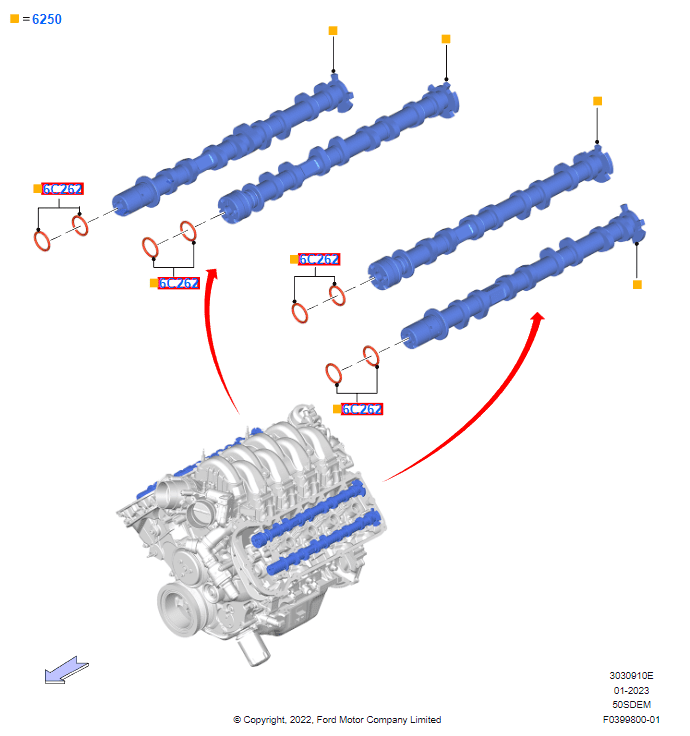

Different Camshafts:
It now looks like both the coyote and darkhorse will have different camshafts. These new camshafts also have seals. (6/15/23)
S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) 1686892037196


Looks like the gen 4 coyote will build upon the previous gen 3 coyote. Uses spray in cylinder liners, port and direct injection, 12:1 CR, and same bore and stroke.

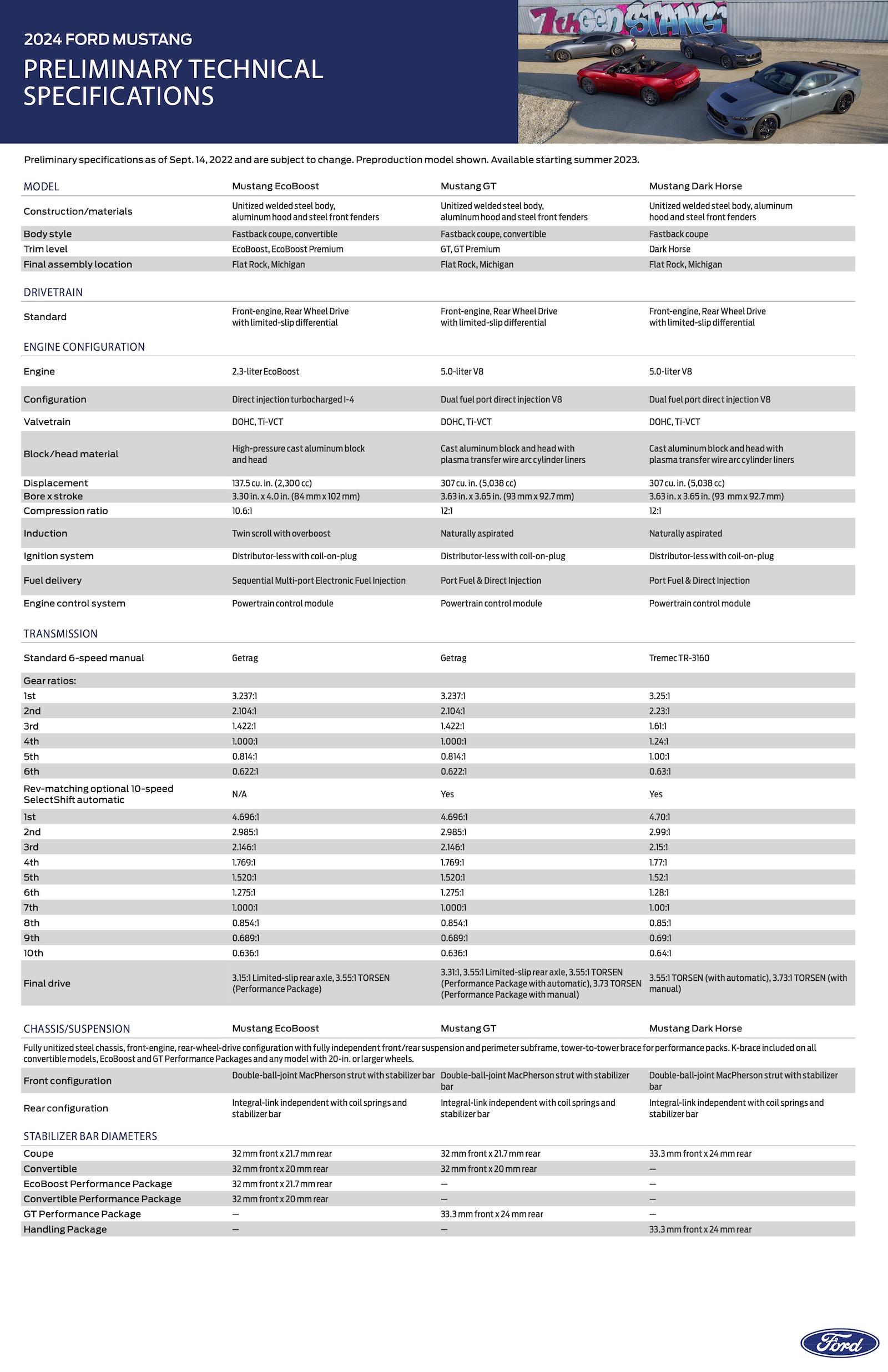

Specs (GT & DarkHorse GEN 4 Coyote):
Engine - 5.0L V8 DOHC
Block - Aluminum block, plasma spray in cylinder liner.
Displacement - 307 cu. in.
Bore x Stroke - 93mm x 92.7mm
Fuel Injection - Port & Direct Injection
Compression Ratio - 12:1

S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) ED2D27FB-F604-4882-B3D3-458ECA46D4B4



S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) FA6BC3FA-A1DF-404A-9A83-4F4241085016



S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) EC097486-78D6-4C3A-93FB-DD0095034C7A




S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) 660864FD-E5BF-4216-896C-1DC46642880D



S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) 9F0F8874-7C1E-4CD0-A904-ACC6CB7329BA

S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) B3E37F07-9347-4D58-99FA-71B3BE389906


S650 Mustang Gen 4 Coyote 5.0L V8 Specs & Photos (S650 Mustang) Screenshot 2023-06-15 221326
Sponsored


Last edited:


OP
OP
tdstuart

tdstuart

Well-Known Member
Joined
Aug 25, 2022
Threads
7
Messages
72
Reaction score
88
Location
Arizona
Vehicle(s)
2015 Mustang GT Premium
First video of the new engine. Shows the new intake system and new exhaust manifolds.



ecoboost321

Well-Known Member
Joined
Mar 12, 2019
Threads
0
Messages
70
Reaction score
2
Location
delray beach, FL
Vehicle(s)
2016 GT350R ; 2018 Tesla Model 3
Hopefully the dual throttlebody intakes allow for more induction noise, which is missing from the coyote based motors (including the voodoo in my GT350R). Exciting news with the updates to this new GEN IV Coyote !


Ewheels

Well-Known Member
Joined
Apr 5, 2019
Threads
9
Messages
207
Reaction score
204
Location
SoCal
Vehicle(s)
2018 GT PP1, 2020 Explorer ST, 2001 Avalon
If the GT3 car gets a 5.4L engine, I'm hopeful the new GT350 (or whatever the next special model will be) will get a version of the 5.4L

OP
OP
tdstuart

tdstuart

Well-Known Member
Joined
Aug 25, 2022
Threads
7
Messages
72
Reaction score
88
Location
Arizona
Vehicle(s)
2015 Mustang GT Premium
If the GT3 car gets a 5.4L engine, I'm hopeful the new GT350 (or whatever the next special model will be) will get a version of the 5.4L
Yes hopefully. I am wondering how they achieve the 5.4L though. If it’s through just bore that would be really nice, especially if it bolts to the coyote heads.

It may be a 5.2L block with a stroker kit. There are already stroker kits available for the 5.2 block that can make it 5.4-5.5L. Would still be cool coming from factory but I am hoping for a new block that works with current gen coyote heads.


Ewheels

Well-Known Member
Joined
Apr 5, 2019
Threads
9
Messages
207
Reaction score
204
Location
SoCal
Vehicle(s)
2018 GT PP1, 2020 Explorer ST, 2001 Avalon
Yes hopefully. I am wondering how they achieve the 5.4L though. If it’s through just bore that would be really nice, especially if it bolts to the coyote heads.

It may be a 5.2L block with a stroker kit. There are already stroker kits available for the 5.2 block that can make it 5.4-5.5L. Would still be cool coming from factory but I am hoping for a new block that works with current gen coyote heads.
If they achieved that only through increased bore, I would be very happy.

Still sad they didn't add any aluminum to the car, it still weighs 3900 lbs.


Schwerin

Well-Known Member
Joined
Jan 31, 2018
Threads
4
Messages
2,037
Reaction score
268
Location
Philly
Vehicle(s)
2019 Mustang BULLITT
The 4th gen 5.0 is my favorite thing about the S650. I definitely think we're going to see a hi-po variant of this engine in a future Boss 302 model.
You could say the DH version is a Hi-Po model.
