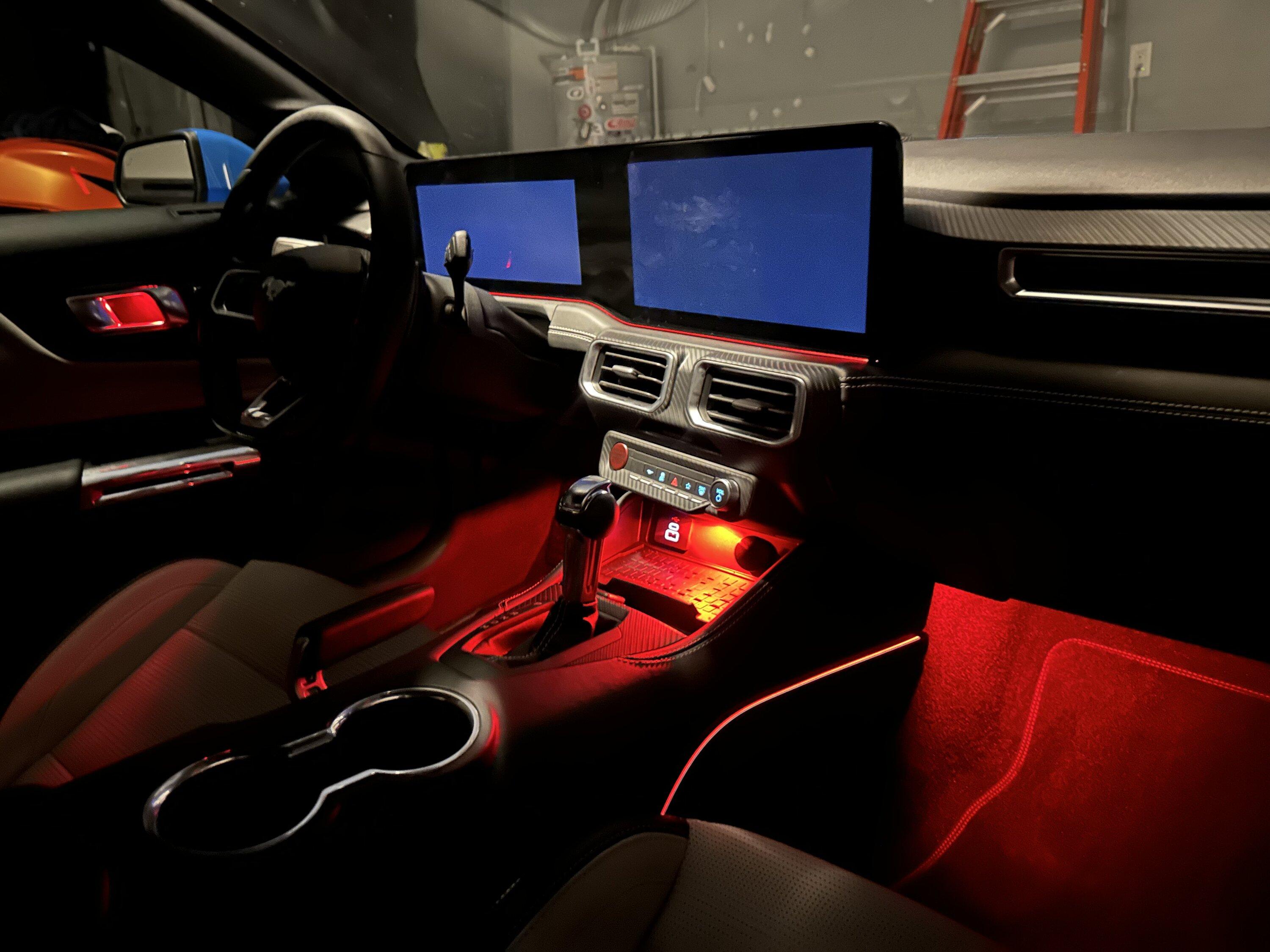

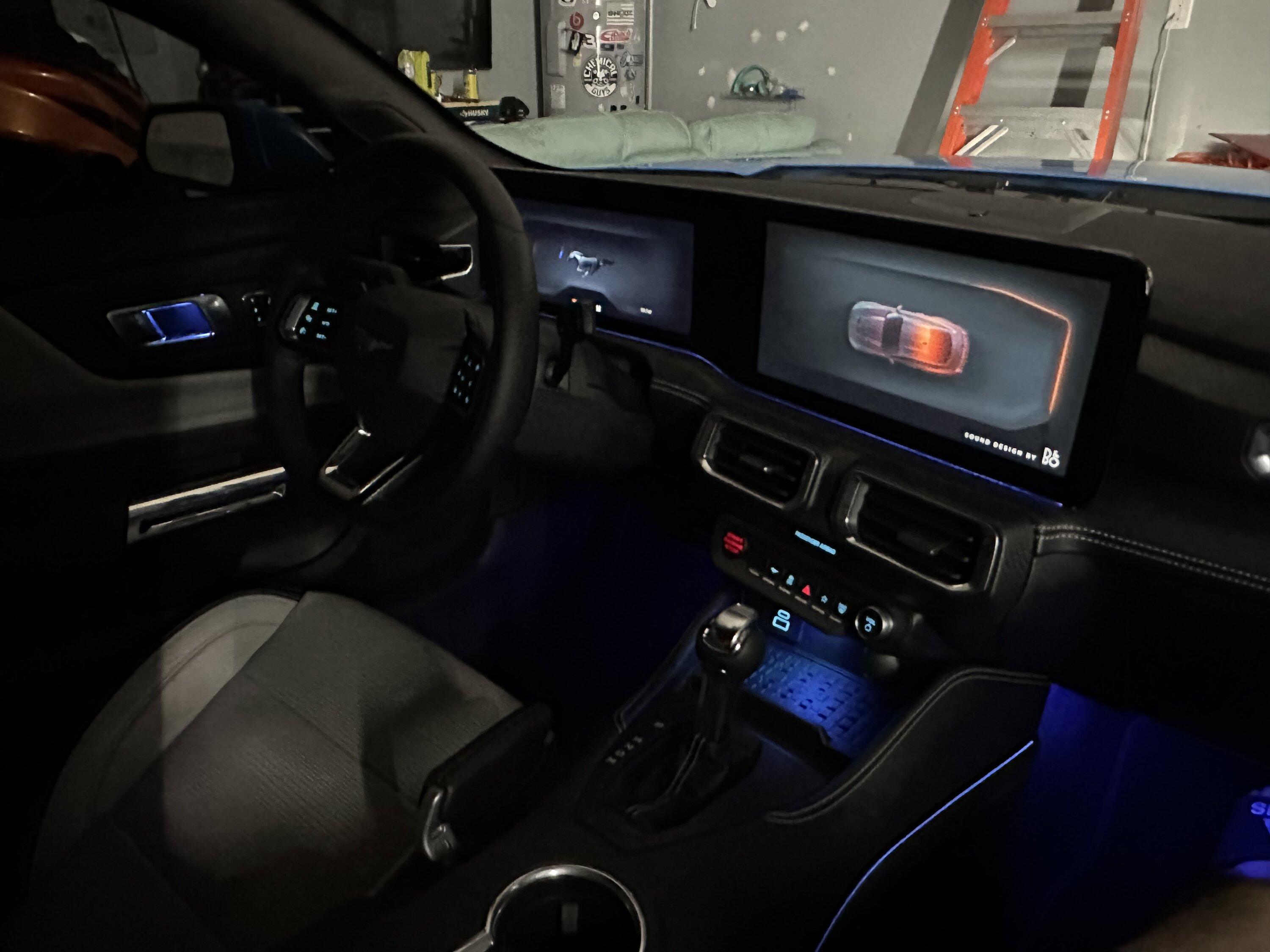

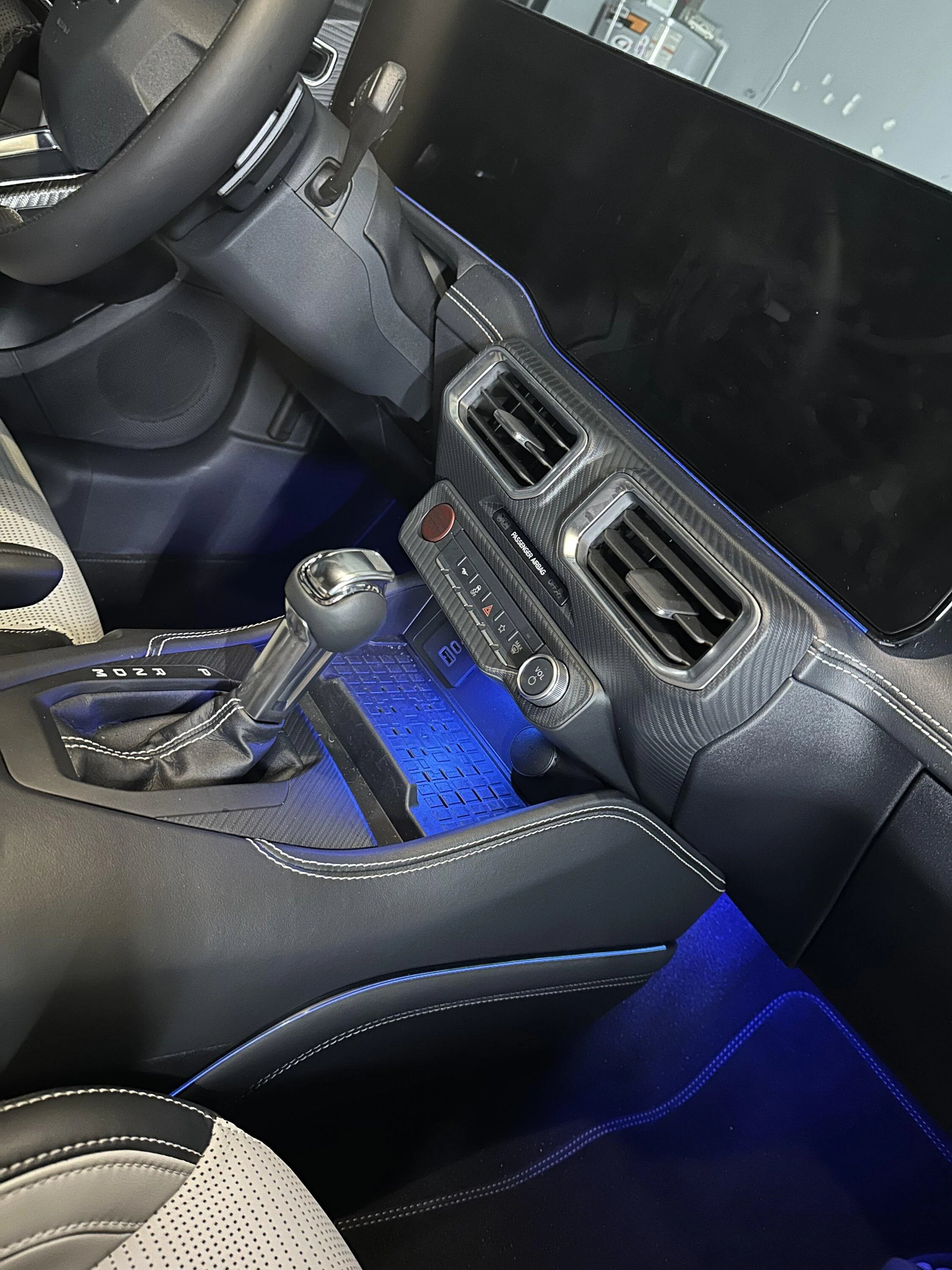

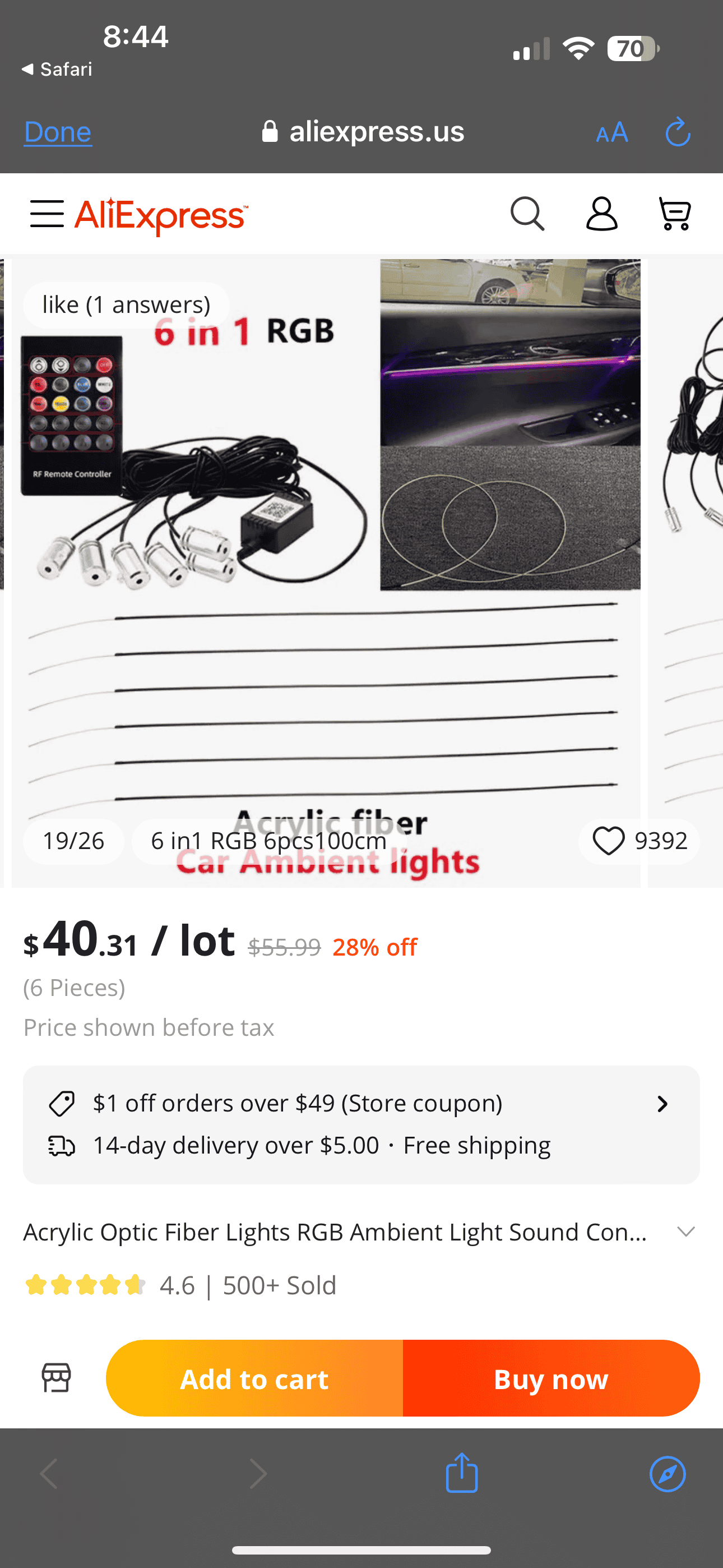

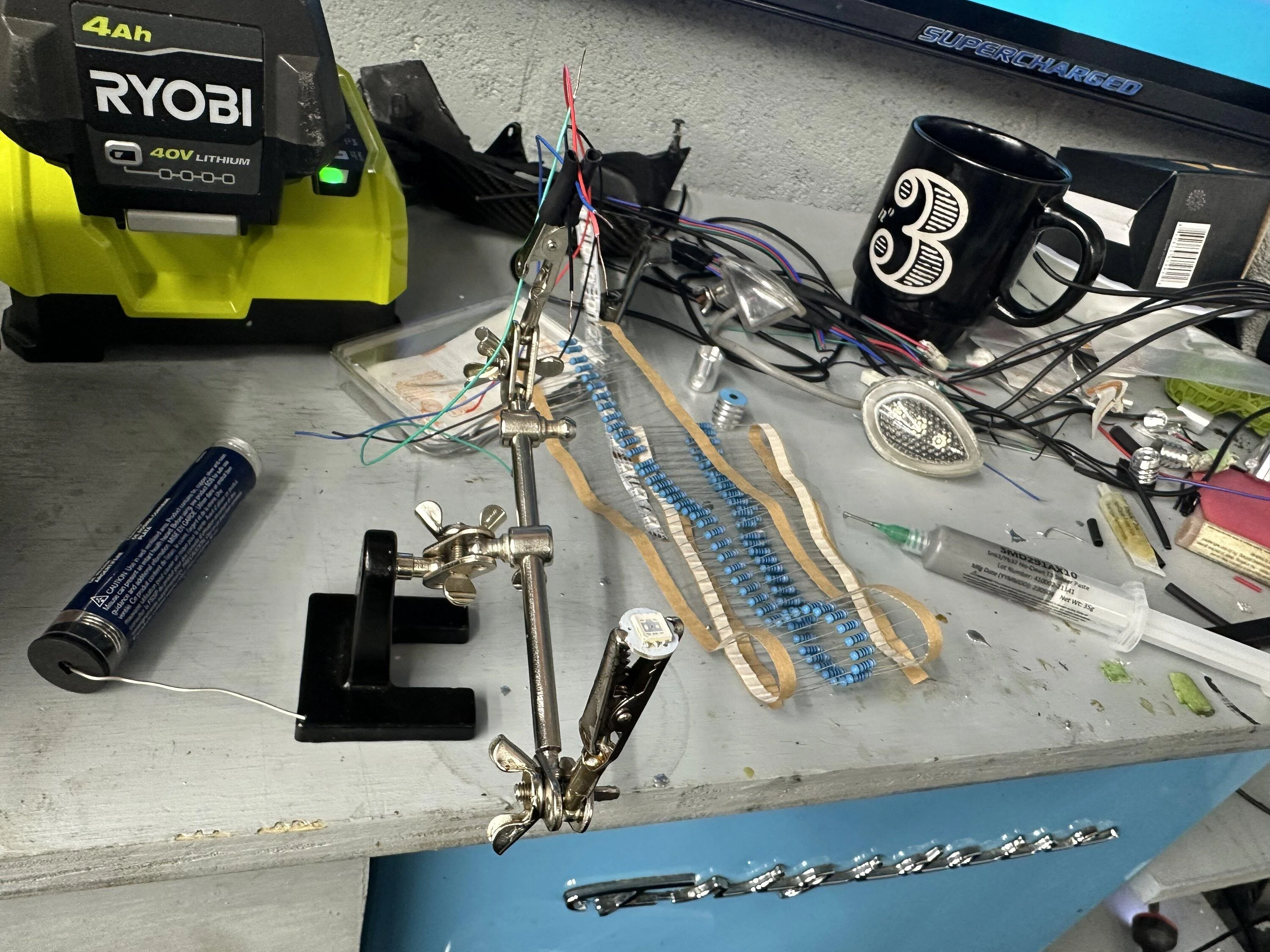

Work in progress but if your good with electronics you can add leds to factory my color, still need to do door panels and cup holder, these are single leds with fiber optic cable. that are swapped from common anode to common cathode, and individually resisted to match factory spec of existing ambient lighting LEDs im not the first person to do this (Ryan gabaldon) on YouTube did on his s550 so I copied his home work.







Sponsored



marcekb

Well-Known Member
Joined
Jun 13, 2023
Threads
4
Messages
426
Reaction score
440
Location
USA
Vehicle(s)
2021 GT Premium, 2024 GT Premium ordered
Work in progress but if your good with electronics you can add leds to factory my color, still need to do door panels and cup holder, these are single leds with fiber optic cable. that are swapped from common anode to common cathode, and individually resisted to match factory spec of existing ambient lighting LEDs im not the first person to do this (Ryan gabaldon) on YouTube did on his s550 so I copied his home work.








That's AWESOME! I'm going to look that video up. How long did it take you so far?


RJV15

Well-Known Member
Joined
Apr 17, 2023
Threads
2
Messages
461
Reaction score
490
Location
Los Angeles
Vehicle(s)
2022 Honda Civic Si
Thats awesome!
Definitely would pay to have this done

Last edited:

Ford Motor Company

Well-Known Member
Official Ford Account
Joined
Feb 24, 2023
Threads
4
Messages
351
Reaction score
344
Location
Dearborn, MI
Vehicle(s)
Ford Mustang
Work in progress but if your good with electronics you can add leds to factory my color, still need to do door panels and cup holder, these are single leds with fiber optic cable. that are swapped from common anode to common cathode, and individually resisted to match factory spec of existing ambient lighting LEDs im not the first person to do this (Ryan gabaldon) on YouTube did on his s550 so I copied his home work.







That looks great! Thank you for sharing this.



Pdaddy1280

Well-Known Member
Joined
Sep 16, 2023
Threads
9
Messages
229
Reaction score
153
Location
Liberty Hill, TX
Vehicle(s)
2024 GT on order
Wow, this is awesome! I am awful with this kind of stuff, and don’t have the patience for it, but I am going to find someone to help me or just pay someone to do. Thank you


DCBuckeye

Active Member
Joined
Oct 1, 2023
Threads
8
Messages
33
Reaction score
45
Location
Maryland
Vehicle(s)
2024 GT Premium
Feel like there is an aftermarket opportunity here. Amazing stuff; too bad I don't have the skill, patience or time for it.


TheRuthlessObliterator

Well-Known Member
Joined
Aug 18, 2023
Threads
21
Messages
173
Reaction score
97
Location
Canada
Vehicle(s)
2024 Mustang GT Premium
Work in progress but if your good with electronics you can add leds to factory my color, still need to do door panels and cup holder, these are single leds with fiber optic cable. that are swapped from common anode to common cathode, and individually resisted to match factory spec of existing ambient lighting LEDs im not the first person to do this (Ryan gabaldon) on YouTube did on his s550 so I copied his home work.







I watched his video and wanted to do it but it got too confusing after a bit. I have been planning to install these lights forever but never got to it. Looks super awesome!

Can I hire you bro? Atleast give me a masterclass so that I can do it myself lol.

P.S- I am serious


roket

Well-Known Member
Joined
Sep 22, 2022
Threads
39
Messages
1,085
Reaction score
1,600
Location
Cave Creek, Arizona
Website
roket333.github.io
Vehicle(s)
2024 Ford Mustang Dark Horse
i am totally adding this to my to-do list


Stratman397

Well-Known Member
Joined
Jul 30, 2023
Threads
23
Messages
1,440
Reaction score
514
Location
Seneca,SC
Vehicle(s)
2018 jeep grand Cherokee, 2006 rubicon
Wow, this is awesome! I am awful with this kind of stuff, and don’t have the patience for it, but I am going to find someone to help me or just pay someone to do. Thank you
Husband said no way, he isn’t drilling holes to do this even though he has made
stereos from scratch. Too bad FORD didn’t think to do this and also add to glove box and garage door openers.


Pdaddy1280

Well-Known Member
Joined
Sep 16, 2023
Threads
9
Messages
229
Reaction score
153
Location
Liberty Hill, TX
Vehicle(s)
2024 GT on order
Husband said no way, he isn’t drilling holes to do this even though he has made
stereos from scratch. Too bad FORD didn’t think to do this and also add to glove box and garage door openers.
Yeah, I actually just watched the video a little while ago, and realized how involved this is. I doubt I do this either, although it does look really good.


roket

Well-Known Member
Joined
Sep 22, 2022
Threads
39
Messages
1,085
Reaction score
1,600
Location
Cave Creek, Arizona
Website
roket333.github.io
Vehicle(s)
2024 Ford Mustang Dark Horse

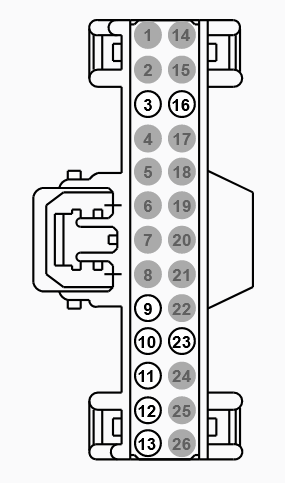

some useful info for anyone trying this, here's a guide on how to find the right wires. ambient lighting has 4 wires, red power, green power, blue power, and ground. vehicles have 2 used ambient lighting zones, 1 and 3. zone 2 is unused and has no wiring at all. there is a long 26-pin connector coming out of the BCM which is located on the right side of the passenger footwell. below is a diagram of the connector

pins 3 and 16 are not ambient lighting, so ignore them.
Pin NumberWire usageWire colorWire gauge
9Zone 3 RedWhite and orange22
10Zone 3 GreenWhite and green22
11Zone 1 RedOrange22
12Zone 1 GreenGreen22
13Zone 1 BlueBlue22
23Zone 3 BlueWhite and blue22
ground is always brown
