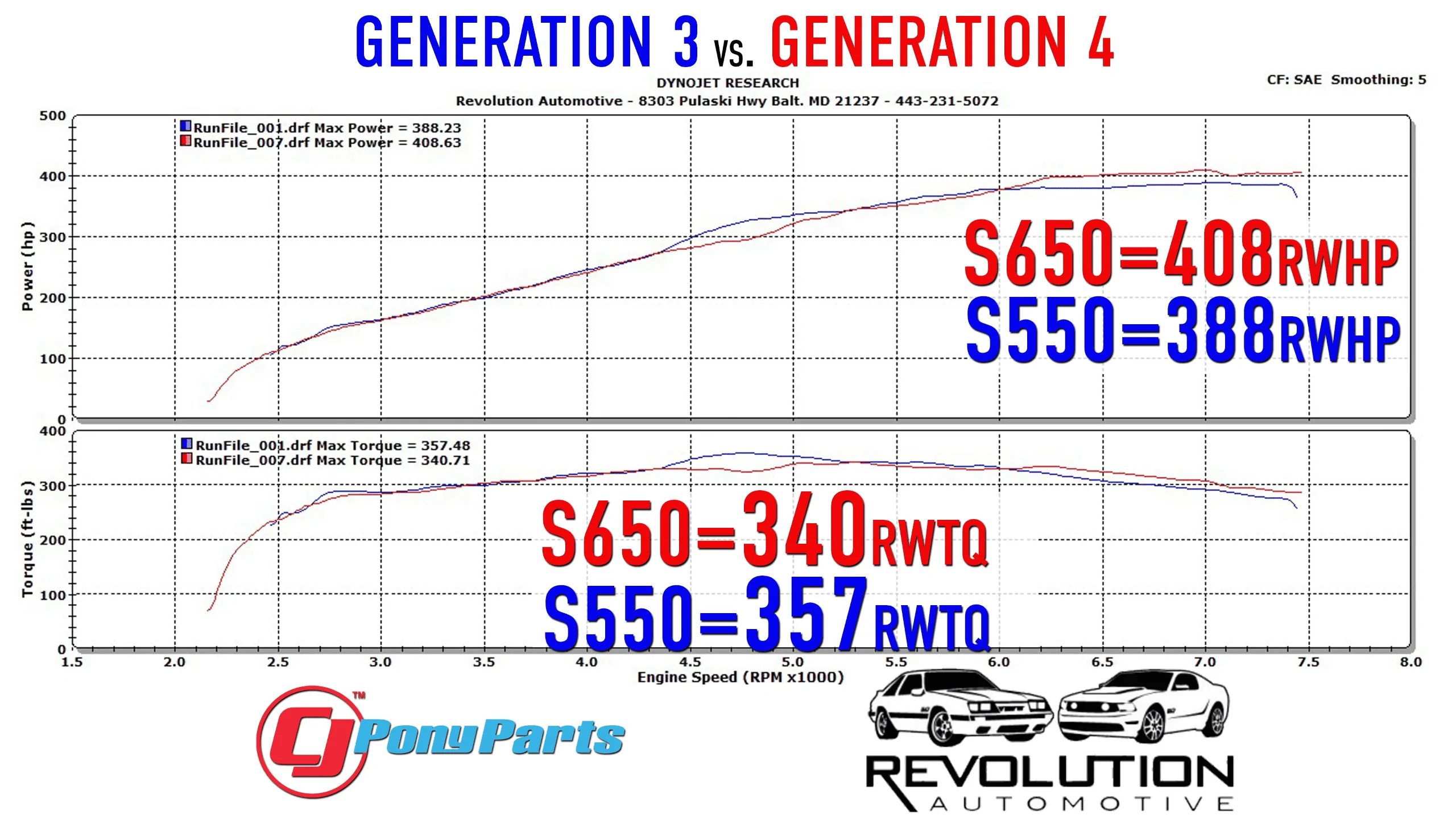

Gen 3 (cold air intake, no tune):
388whp
357wtq

Gen 4 (active exhaust):
408whp (+20)
340wtq (-17)

Time stamp set to comparison.

Sponsored


OP
OP
OppoLock

OppoLock

RWD Addict
Joined
Apr 21, 2014
Threads
10
Messages
3,115
Reaction score
1,567
Location
FL
Vehicle(s)
2015 GT, 2020 GT350
Worth noting the dyno graph itself instead of just focusing on peak power and torque.

The gen 4 makes approx. 15-20whp more from 6250-7500rpm, basically where the car will be during acceleration runs, especially so for those with the 10-speed and its short ratios.

The gen 3 has both a torque and power spike from 4500-5000rpm, coincidentally where the gen 4 has a small valley. The gen 3's torque peak arrives at that 4500rpm spike, but more or less falls exactly in-line with the gen 4's overall torque delivery. So the peak delta of -17wtq is not telling the entire picture; they're producing nearly identical torque above and below that midrange gap.

In short, the gen 4 makes marginal but noticeable improvements where it matters.

S650 Mustang Gen 3 vs Gen 4 Coyote Engine Dyno Comparison 1693361595737


Dave2013M3

Well-Known Member
Joined
Aug 22, 2014
Threads
17
Messages
1,090
Reaction score
407
Location
El Segundo,Ca
Vehicle(s)
2020 Ford Mustang GT Base PP1
Gen 3 (cold air intake, no tune):
388whp
357wtq

Gen 4 (active exhaust):
408whp (+20)
340wtq (-17)

Time stamp set to comparison.


Remember the Gen3 is also on 87 octane. 1:32 timeline. That's worth some power, that 388 easily could have been mid 390s. I wish they would have run the S550 with at least 91 octane. The S550 hp pretty much peaked at 5800rpm.

There is no doubt the Gen4 is making more power. Love that curve.

Last edited:

Zig

Well-Known Member
Joined
Jul 21, 2023
Threads
18
Messages
1,161
Reaction score
566
Location
Virginia
Vehicle(s)
gt pp, Xt5 Sprt, c6 f55, 1500 z71, fatboy, sprtstr
Worth noting the dyno graph itself instead of just focusing on peak power and torque.

The gen 4 makes approx. 15-20whp more from 6250-7500rpm, basically where the car will be during acceleration runs, especially so for those with the 10-speed and its short ratios.

The gen 3 has both a torque and power spike from 4500-5000rpm, coincidentally where the gen 4 has a small valley. The gen 3's torque peak arrives at that 4500rpm spike, but more or less falls exactly in-line with the gen 4's overall torque delivery. So the peak delta of -17wtq is not telling the entire picture; they're producing nearly identical torque above and below that midrange gap.

In short, the gen 4 makes marginal but noticeable improvements where it matters.

It’s almost like they pushed the ‘bump’ up further in the range. Looks like the 4.8k dip (650) / bump (550) makes its appearance at 6.1k on the 650.

edit: fixed typo.
[fixed typo of 4.4 - the dip/bump starts around 4.4 and is most noticeable around 4.8]

Last edited:

Zig

Well-Known Member
Joined
Jul 21, 2023
Threads
18
Messages
1,161
Reaction score
566
Location
Virginia
Vehicle(s)
gt pp, Xt5 Sprt, c6 f55, 1500 z71, fatboy, sprtstr
Curious as to the source of the dip

edit: any chance it’s 2nd tb related?

Last edited:


Darkness24

Well-Known Member
Joined
Mar 28, 2023
Threads
13
Messages
165
Reaction score
119
Location
US
Vehicle(s)
2011 Mustang Gt Ordered 2024 Dark Horse Premium
Please also note that the 24 had not been broken in yet! I'm unsure how much of a difference that makes.


Nexus

Well-Known Member
Joined
Mar 19, 2018
Threads
0
Messages
90
Reaction score
39
Location
Canada
Vehicle(s)
2019 Mustang
I'd like to see a more apples/apples comparison of a S550 Bullitt VS S650 GT (as both have the MT-82) dyno to see what is different if anything.


slowjim

Well-Known Member
Joined
Jul 9, 2023
Threads
1
Messages
50
Reaction score
57
Location
Ohio
Vehicle(s)
24 GT base manual
Too bad the added weight offsets the power increase


BlackFerret69

Well-Known Member
Joined
Jul 19, 2023
Threads
10
Messages
315
Reaction score
276
Location
Florida
Vehicle(s)
2006 Mustang GT Premium 5M, Black on Black.
Maybe the blending of the throttle bodies?
You wouldn't think so. The engine is at full throttle for a Dyno run, so you would think that Ford would program the PCM for both throttle bodies to be wide open.

But you never know, the PCM may be programmed to only engage the second throttle body at a given RPM and ignore throttle input.

If so, then it may very well create that dip in the curve depending on how aggressively Ford has programmed the second throttle body to kick in, momentarily creating more air flow and leaning it out for a split second before the fuel catches up.

Remembering that the PCM has to detect the air flow before adjusting the fuel to match.

OP
OP
OppoLock

OppoLock

RWD Addict
Joined
Apr 21, 2014
Threads
10
Messages
3,115
Reaction score
1,567
Location
FL
Vehicle(s)
2015 GT, 2020 GT350

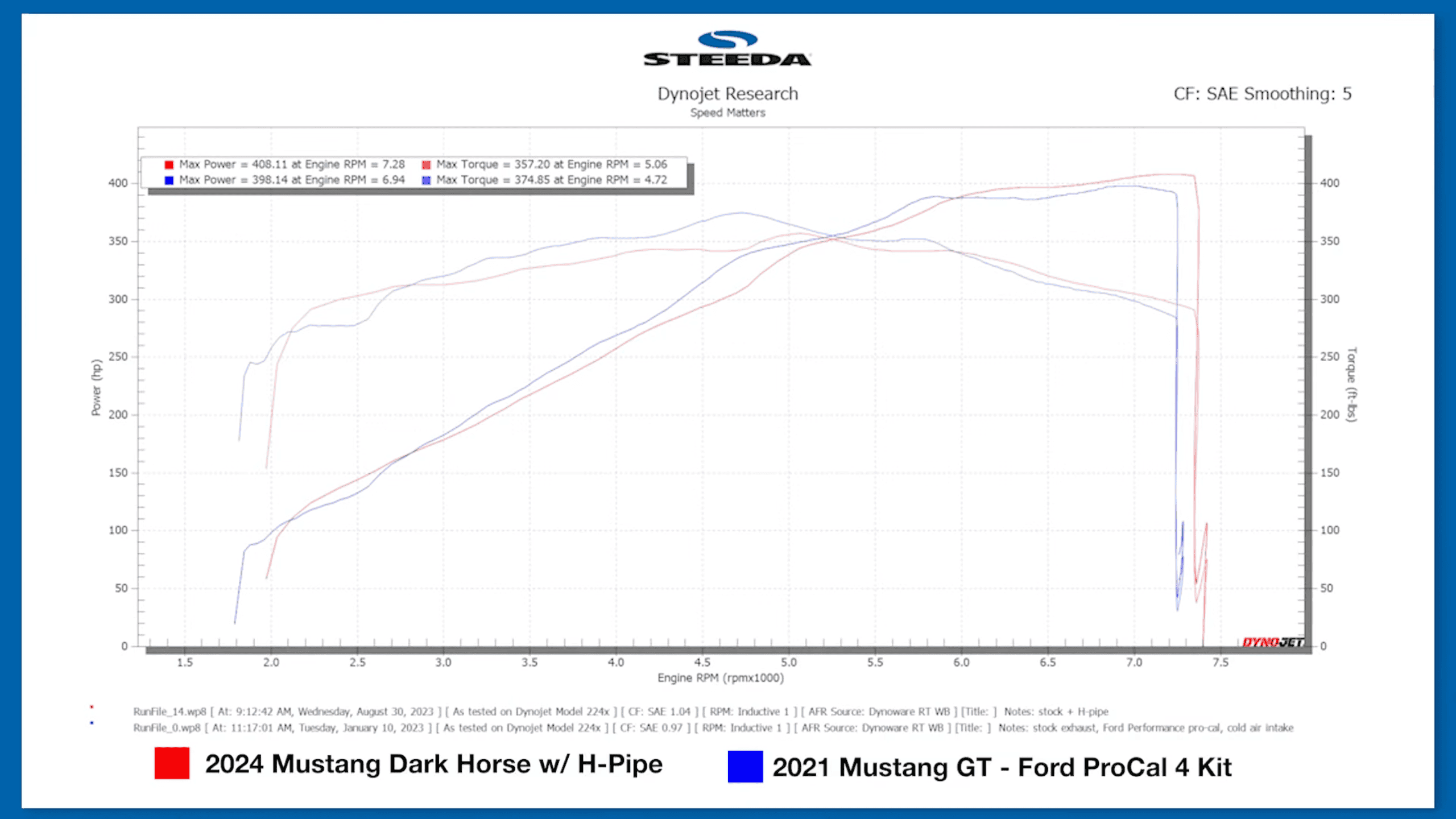

Another comparison, this time from Steeda.

'24 Dark Horse (modified w H-Pipe; only adds ~2hp per Steeda)
408whp
357wtq

'21 GT (modified w Ford Procal 4 Kit - link to kit; claims +19hp/+18lb-ft)
398whp
375wtq

Three things worth mentioning here:

1) A Gen 3 with basic bolt-ons (intake, TB, tune, catback) is making more power and torque from 2750 - 6000rpm than a stock DH 5.0.

2) Once again, we see the Gen 3 surge around 4500, where the Gen 4 takes a slight dive.

3) The Gen 4's dual intake setup must really help it breathe at higher RPM, because once again, from 6000rpm to redline, it continues to make power, even over a modified Gen 3 that has it beat pretty much everywhere else across the range.

S650 Mustang Gen 3 vs Gen 4 Coyote Engine Dyno Comparison 1693442647698


Zig

Well-Known Member
Joined
Jul 21, 2023
Threads
18
Messages
1,161
Reaction score
566
Location
Virginia
Vehicle(s)
gt pp, Xt5 Sprt, c6 f55, 1500 z71, fatboy, sprtstr
Another comparison, this time from Steeda.

'24 Dark Horse (modified w H-Pipe; only adds ~2hp per Steeda)
408whp
357wtq

'21 GT (modified w Ford Procal 4 Kit - link to kit; claims +19hp/+18lb-ft)
398whp
375wtq

Three things worth mentioning here:

1) A Gen 3 with basic bolt-ons (intake, TB, tune, catback) is making more power and torque from 2750 - 6000rpm than a stock DH 5.0.

2) Once again, we see the Gen 3 surge around 4500, where the Gen 4 takes a slight dive.

3) The Gen 4's dual intake setup must really help it breathe at higher RPM, because once again, from 6000rpm to redline, it continues to make power, even over a modified Gen 3 that has it beat pretty much everywhere else across the range.

If it’s ‘secondary’ related it should be a fairly quick and easy fix. Will be interesting to see what is found once tuning is opened up.


Zig

Well-Known Member
Joined
Jul 21, 2023
Threads
18
Messages
1,161
Reaction score
566
Location
Virginia
Vehicle(s)
gt pp, Xt5 Sprt, c6 f55, 1500 z71, fatboy, sprtstr
…second throttle body to kick in, momentarily creating more air flow and leaning it out for a split second before the fuel catches up.
Pull the snorkels, leave the tbs naked and do a pull?

Edit: ^ while not wholeheartedly recommended. Point being we should be able to determine without having to crack the computer.

Last edited:

Evo1986

Well-Known Member
Joined
Aug 8, 2022
Threads
12
Messages
484
Reaction score
389
Location
Germany
Vehicle(s)
Ford Mustang GT - 55 years edition Kona Blue AT
Changes are marginal and yet we probably need to pay pay 10-15K more for the S650 here in Europe :D
