NEW Gen 6 3.0L Whipple Supercharger for the 2024 Mustang!

LethalPerformance

Well-Known Member
Joined
Sep 5, 2014
Threads
2
Messages
754
Reaction score
15
Location
Fl
Vehicle(s)
2015 Whippled Mustang GT

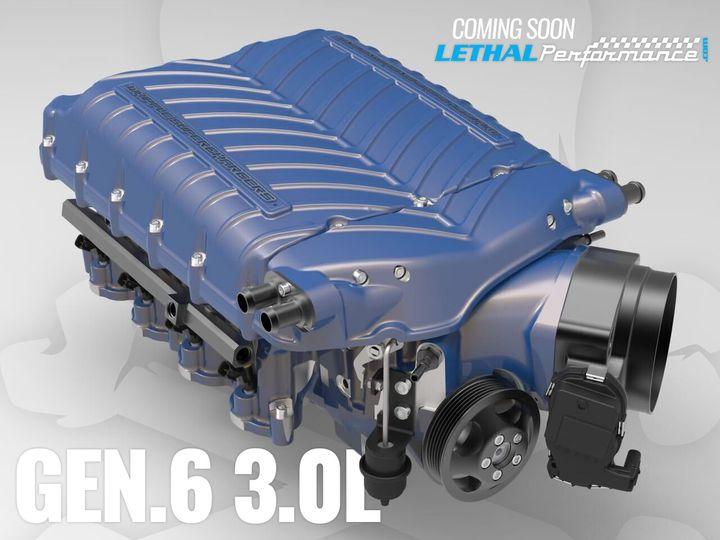

The kings of supercharger innovation are at it again with their new Gen 6 3.0L for the new S650 2024 Mustang GT and Dark Horse.
Here’s what we know so far:
All New, High-Efficiency 120mm Rotors,
All new Bearing Plate
Changes to Housing
Dual Air Boxes & Dual Filters mated to a single Throttle Body
Stage 1 Kit uses a 92mm Throttle Body
Stage 2 Kit uses a 112mm Throttle Body
50 State Legal Calibration!
STAY TUNED FOR MORE INFORMATION COMING SOON!




Stonehauler

Well-Known Member
Joined
Aug 13, 2014
Threads
2
Messages
228
Reaction score
64
Location
Delaware
Vehicle(s)
F350, 550i
hmmm, This looks like it won't be able to make use of the dual air boxes either. I wonder why not.


Schwerin

Well-Known Member
Joined
Jan 31, 2018
Threads
2
Messages
1,928
Reaction score
144
Location
Philly
Vehicle(s)
2019 Mustang BULLITT
I wonder why they didn’t just bust the 3.8 out at the gate 🤷🏼‍♂️
if there is only a 3.0 people will just buy the 3.0.... then they can get more money buy selling an upgrade kit to those people 18 month later.


because_murica

Well-Known Member
Joined
Aug 18, 2021
Threads
8
Messages
525
Reaction score
595
Location
United States
Vehicle(s)
2013 Camaro SS-1LE
hmmm, This looks like it won't be able to make use of the dual air boxes either. I wonder why not.
A lot harder to engineer a blower with dual throttle bodies. Plus, the entire plenum is removed and replaced by the blower. Intake air is compressed as evenly as possible by the blower anyway and sent down the integrated runners. So no real point in dual TBs anyway.



OP
OP
LethalPerformance

LethalPerformance

Well-Known Member
Joined
Sep 5, 2014
Threads
2
Messages
754
Reaction score
15
Location
Fl
Vehicle(s)
2015 Whippled Mustang GT
hmmm, This looks like it won't be able to make use of the dual air boxes either. I wonder why not.
The system will still utilize dual air boxes and filters but will merge to a single throttle body.

OP
OP
LethalPerformance

LethalPerformance

Well-Known Member
Joined
Sep 5, 2014
Threads
2
Messages
754
Reaction score
15
Location
Fl
Vehicle(s)
2015 Whippled Mustang GT
if there is only a 3.0 people will just buy the 3.0.... then they can get more money buy selling an upgrade kit to those people 18 month later.
Most people don't need a 3.8L. I've made over 1100rwhp on a Gen 3 car with a non ported pre-production 3.0l with the 132mm TB and went [email protected] with it. The 3.8L is a competition blower and meant for all out race setups making north of 1100rwhp. It won't be as effective to run the 3.8L on a stock Gen 4 motor for a few reasons. The 3.8L will make more power than the gen 4 will be able to support with stock internals. It won't be as efficient as the 3.0L for those making less than 1100rwhp and then the biggest issue is that with the new PCM's on the Gen 4 S650 no one will be able to tune with alternative fuel types, larger injectors and aftermarket fuel systems.

Hope that helps.


HoosierDaddy

Well-Known Member
Joined
Jan 2, 2016
Threads
10
Messages
2,826
Reaction score
33
Location
Winchestertonfieldville (ok, Scottsdale), AZ
Vehicle(s)
2016 GT Premium PP
First Name
Randy
hmmm, This looks like it won't be able to make use of the dual air boxes either. I wonder why not.
Didn't it say: single throttle body for twin intakes? Which raises the question: go H or X pipe before the throttle body?

OP
OP
LethalPerformance

LethalPerformance

Well-Known Member
Joined
Sep 5, 2014
Threads
2
Messages
754
Reaction score
15
Location
Fl
Vehicle(s)
2015 Whippled Mustang GT
Didn't it say: single throttle body for twin intakes? Which raises the question: go H or X pipe before the throttle body?
Double HH Intake just like our Double HH pipe from Corsa. lol


Decible

Well-Known Member
Joined
Dec 26, 2020
Threads
0
Messages
95
Reaction score
14
Location
Georgia
Vehicle(s)
2020 Ford Mustang GT PP1
First Name
Sam
Most people don't need a 3.8L. I've made over 1100rwhp on a Gen 3 car with a non ported pre-production 3.0l with the 132mm TB and went [email protected] with it. The 3.8L is a competition blower and meant for all out race setups making north of 1100rwhp. It won't be as effective to run the 3.8L on a stock Gen 4 motor for a few reasons. The 3.8L will make more power than the gen 4 will be able to support with stock internals. It won't be as efficient as the 3.0L for those making less than 1100rwhp and then the biggest issue is that with the new PCM's on the Gen 4 S650 no one will be able to tune with alternative fuel types, larger injectors and aftermarket fuel systems.

Hope that helps.
Speaking of the ecu…what’s this going happen for those that want to run headers or a built motor?

OP
OP
LethalPerformance

LethalPerformance

Well-Known Member
Joined
Sep 5, 2014
Threads
2
Messages
754
Reaction score
15
Location
Fl
Vehicle(s)
2015 Whippled Mustang GT
Speaking of the ecu…what’s this going happen for those that want to run headers or a built motor?
Right now it doesn't look like there will be support for extreme combos for built motors, aftermarket fuel systems, larger injectors as well as different fuel types. With that said I run the Whipple cal on our 21 F150 that's a 50 state legal cal. Although Whipple will not tune for headers or make any changes for lets say an aftermarket converter we're still running both of those on our truck and it runs great. Yes there's a CEL light for the headers but otherwise the truck with their calibration works really well and I went 10's with it.

Only time will tell. We will update everyone with more info on the Whipple system and other mods for the 2024+ as we get them.

Thanks!


because_murica

Well-Known Member
Joined
Aug 18, 2021
Threads
8
Messages
525
Reaction score
595
Location
United States
Vehicle(s)
2013 Camaro SS-1LE
Right now it doesn't look like there will be support for extreme combos for built motors, aftermarket fuel systems, larger injectors as well as different fuel types. With that said I run the Whipple cal on our 21 F150 that's a 50 state legal cal. Although Whipple will not tune for headers or make any changes for lets say an aftermarket converter we're still running both of those on our truck and it runs great. Yes there's a CEL light for the headers but otherwise the truck with their calibration works really well and I went 10's with it.

Only time will tell. We will update everyone with more info on the Whipple system and other mods for the 2024+ as we get them.

Thanks!
Damn, well that's bullshit. These cars will account for a decent amount of future work for shops across the nation (if not the world). So it's sad to see Ford pull this. I understand it from a legal, emissions, and warranty perspective, but it's still bullshit.


Decible

Well-Known Member
Joined
Dec 26, 2020
Threads
0
Messages
95
Reaction score
14
Location
Georgia
Vehicle(s)
2020 Ford Mustang GT PP1
First Name
Sam
Yes, it’s really going to hurt the aftermarket 🥴

As tempting as this car is…it’s going to constantly get gapped by the 550 platform 😔

Last edited:

Rio Lobo

New Member
Joined
Sep 15, 2022
Threads
0
Messages
1
Reaction score
1
Location
MS
Vehicle(s)
Civic Si
First Name
Kevin
Right now it doesn't look like there will be support for extreme combos for built motors, aftermarket fuel systems, larger injectors as well as different fuel types. With that said I run the Whipple cal on our 21 F150 that's a 50 state legal cal. Although Whipple will not tune for headers or make any changes for lets say an aftermarket converter we're still running both of those on our truck and it runs great. Yes there's a CEL light for the headers but otherwise the truck with their calibration works really well and I went 10's with it.

Only time will tell. We will update everyone with more info on the Whipple system and other mods for the 2024+ as we get them.

Thanks!
Not sure how it works with the '21 F-150, but with Whipple being an "approved" vendor to develop a cal for the locked ECU, does that mean warranty stays intact? Or is there an overriding warranty on the engine like Roush has? Not necessarily a deal breaker - just a curiosity.
