https://lmr.com/products/2024-mustang-gt-dyno

Y'all should know us well enough by now; we move quickly when it comes to this type of stuff. The 2024 Mustang GT has been back at LMR HQ for not even 24 hours and we've already put it on the dyno! The cars with active exhaust are rated at 486 HP / 418 TQ and the GTs without active exhaust are rated at 480 HP / 418 TQ.

Car Specs:
Stock Gen 4 Coyote Engine w/ ~1100 Miles
Stock 10R80 Automatic Transmission (Gearing explained in video)
93 Octane Fuel10R80

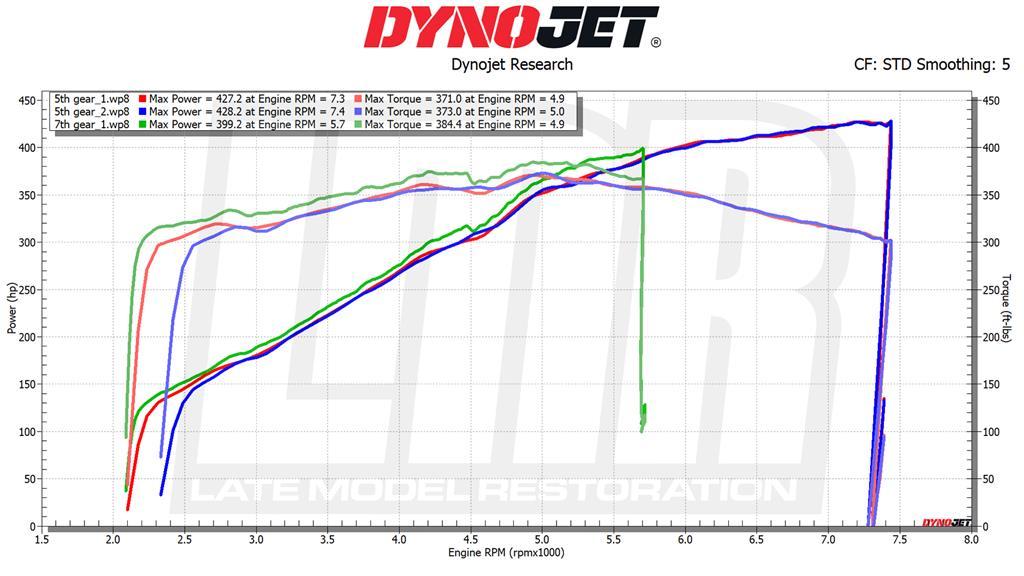

Dyno Results:
428 Horsepower
384 lb-ft Torque

S650 Mustang LMR's 2024 Mustang GT 10R80 Dyno Results 2024-mustang-gt-dyno_5ae74462

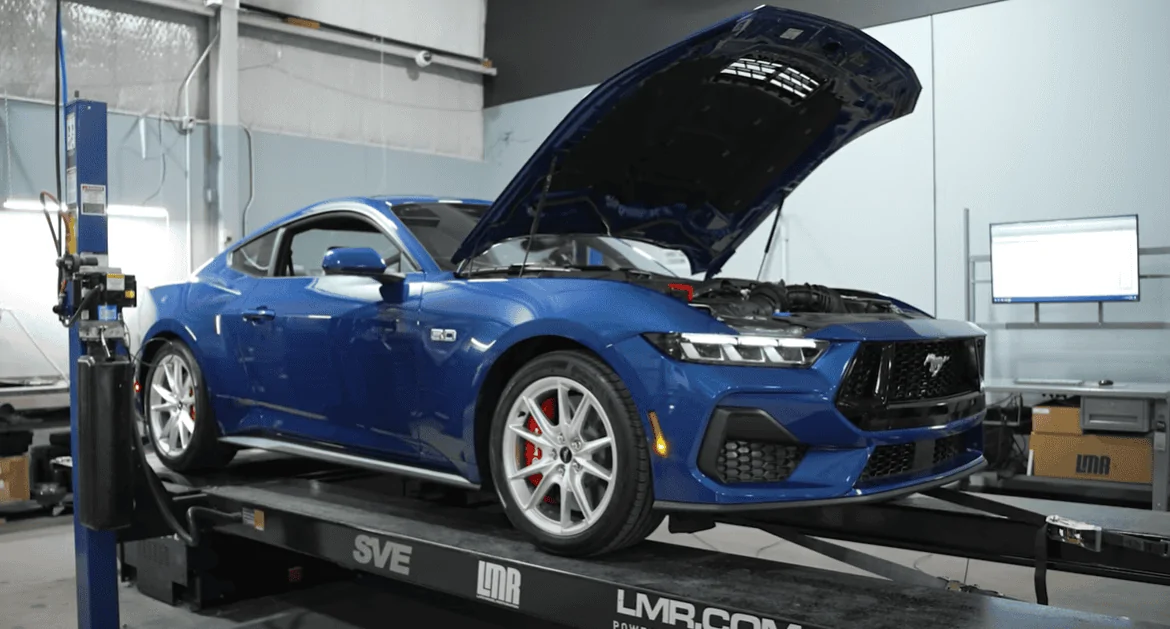

S650 Mustang LMR's 2024 Mustang GT 10R80 Dyno Results On Dyno
Sponsored



Zig

Well-Known Member
Joined
Jul 21, 2023
Threads
17
Messages
1,123
Reaction score
548
Location
Virginia
Vehicle(s)
gt pp, Xt5 Sprt, c6 f55, 1500 z71, fatboy, sprtstr
^ video or it didn’t happen. Lol. Seriously, nice 👍🏻

doh: click the link. Sorry old school. Why I gotta go there when I am here….


Q6543

Well-Known Member
Joined
Dec 11, 2022
Threads
10
Messages
763
Reaction score
900
Location
Detroit
Vehicle(s)
1993 fox
Can you extrapolate the difference on the 7th gear pull… you can see it was putting down a good chunk more hp/tq..

was it 10…20 perhaps?


JGillis

Well-Known Member
Joined
Sep 9, 2013
Threads
8
Messages
238
Reaction score
40
Location
USA
Vehicle(s)
Taurus SHO
For those like me who don't like to have to click through to yet another site.

Dyno Results:
428 Horsepower
384 lb-ft Torque

S650 Mustang LMR's 2024 Mustang GT 10R80 Dyno Results 2024-mustang-gt-dyno_5ae74462




  • Like
Reactions: Zig

LETHAL

From the D but in the NC
Joined
Sep 25, 2015
Threads
12
Messages
1,500
Reaction score
801
Location
From the D to NC
Vehicle(s)
2024 Mustang GT
420 wheel and not in 1:1. That is gonna be stout once you can get past the limiter.



Katastrophe

Well-Known Member
Joined
Nov 7, 2014
Threads
4
Messages
437
Reaction score
141
Location
MB, Canada
Vehicle(s)
14' Honda Civic EX; 14' Honda VFR800 DLX
So factory fuel cut is 7400?

Also, the speed limiter at 140 and change is pretty damn low for a car like this. It'd be a shame if the PP equipped cars are the same. That would be lower than the previous gen, IIRC.

EDIT: Thanks for the video and graph! Can't wait to see what changes happen with various modifications.


Dena

Well-Known Member
Joined
May 24, 2023
Threads
1
Messages
596
Reaction score
437
Location
Phoenix AZ
Vehicle(s)
96 Mustang GT, 24 Red Dark horse premium Manual
So factory fuel cut is 7400?

Also, the speed limiter at 140 and change is pretty damn low for a car like this. It'd be a shame if the PP equipped cars are the same. That would be lower than the previous gen, IIRC.

EDIT: Thanks for the video and graph! Can't wait to see what changes happen with various modifications.
The dark horse is supposed to cut out at 168 miles per hour. I think it's because the aerodynamics are different for the dark horse and it stays glued to the road better. They may have also set it that way figuring anybody going that fast was gong to have the gurney flap installed.


Katastrophe

Well-Known Member
Joined
Nov 7, 2014
Threads
4
Messages
437
Reaction score
141
Location
MB, Canada
Vehicle(s)
14' Honda Civic EX; 14' Honda VFR800 DLX
The dark horse is supposed to cut out at 168 miles per hour. I think it's because the aerodynamics are different for the dark horse and it stays glued to the road better. They may have also set it that way figuring anybody going that fast was gong to have the gurney flap installed.
Well, I hope it isn't 168 either. The S550 (as tested on the Autobahn) hit 260kph with the PP or Bullitt and 278kph with the M1. If the S650 is slower in either (or both) metrics...that is some real big-brother BS or cost-cutting...both of which can take a hike!


Dena

Well-Known Member
Joined
May 24, 2023
Threads
1
Messages
596
Reaction score
437
Location
Phoenix AZ
Vehicle(s)
96 Mustang GT, 24 Red Dark horse premium Manual
Well, I hope it isn't 168 either. The S550 (as tested on the Autobahn) hit 260kph with the PP or Bullitt and 278kph with the M1. If the S650 is slower in either (or both) metrics...that is some real big-brother BS or cost-cutting...both of which can take a hike!
That's 270 kph minus tire slip. I am sure once the computer is hacked it will do much better.


Lastoutlaw_21

Well-Known Member
Joined
Oct 22, 2022
Threads
9
Messages
415
Reaction score
317
Location
Macon Ga
Vehicle(s)
Kia stinger and hyundai tucson hybrid
Well, I hope it isn't 168 either. The S550 (as tested on the Autobahn) hit 260kph with the PP or Bullitt and 278kph with the M1. If the S650 is slower in either (or both) metrics...that is some real big-brother BS or cost-cutting...both of which can take a hike!
The reasoning for 168 was probably because anything after that didn't offer must of a difference. If they improved the suspension, retuned it. I'm guessing they are saying that the car @ 168 and do what the previous models @ 172 could do just more efficiently. Especially if they recalibrate everything and improved on stuff DH wise. That's just a thought though as to what could have lead to that.


Dena

Well-Known Member
Joined
May 24, 2023
Threads
1
Messages
596
Reaction score
437
Location
Phoenix AZ
Vehicle(s)
96 Mustang GT, 24 Red Dark horse premium Manual
There is one other reason for setting speed limit and that is tires. Once you start getting around 150 miles per hour it takes a better tire just to stay together at that speed. It used to be worst when we had the double nickel and there were plenty of tires that would come apart ant 100 miles per hour or less. That was when I started looking at Goodyear Eagle because they were a better tire than most of what was on the market.
I had tires that never exceeded the double nickel with all sorts of strange failure. You get what you pay for and I am willing to pay if I can avoid tire failure.
