DIY (photo essay) for Ford Performance under hood strut brace kit

[djcwardog]

My 300A car came without either of these under hood bracing parts at all - just a piece of plastic trim as shown In the photos below. While I had not yet had reason to complain about the handling of my new car, this ought to tighten things up just a bit, especially when going hard in the corners.

Using the Ford Accessories web page I ordered this kit comprising two metal parts and 4 nuts. A slip of yellow paper in the box provided a link to online instructions, linked below. This installation was fairly straightforward.

https://performanceparts.ford.com/download/instructionsheets/FORDINSTSHTM-20201-M-GT350.PDF

Mustang Ford Performance Strut Tower Brace (Qty - 1)	$260.00
Part Number: M20201MA	I used more Ford Pass Points instead of cash.

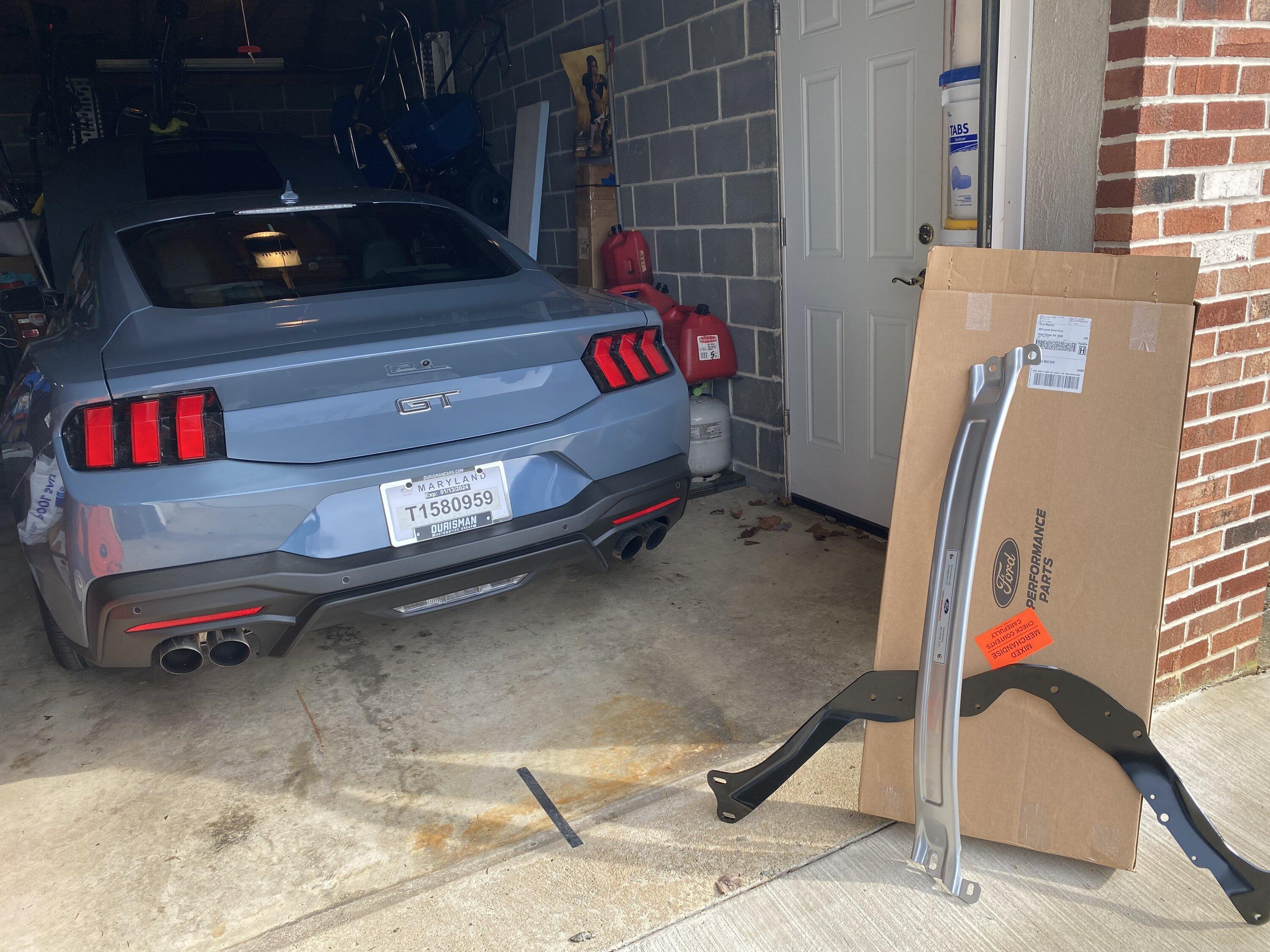

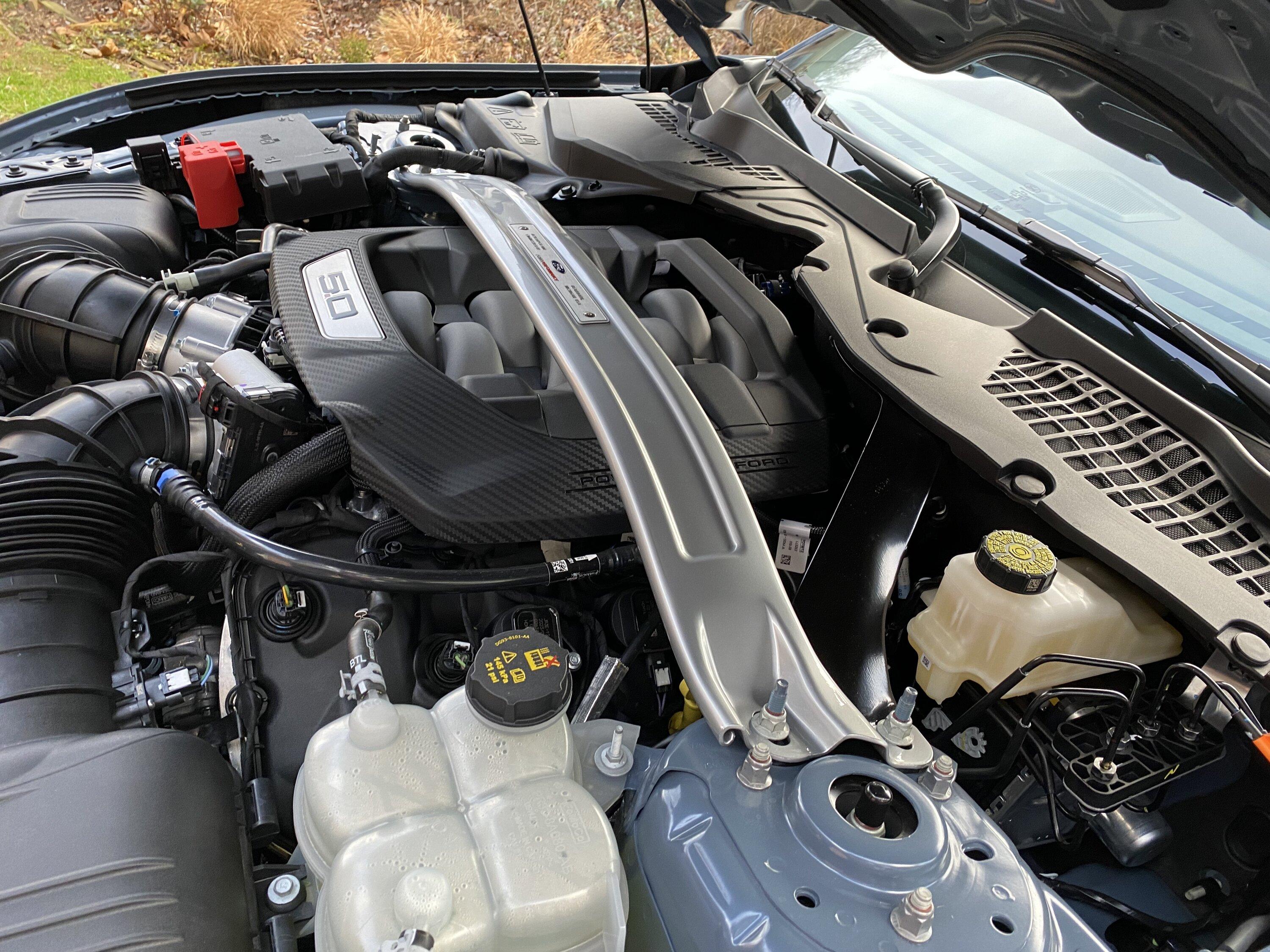

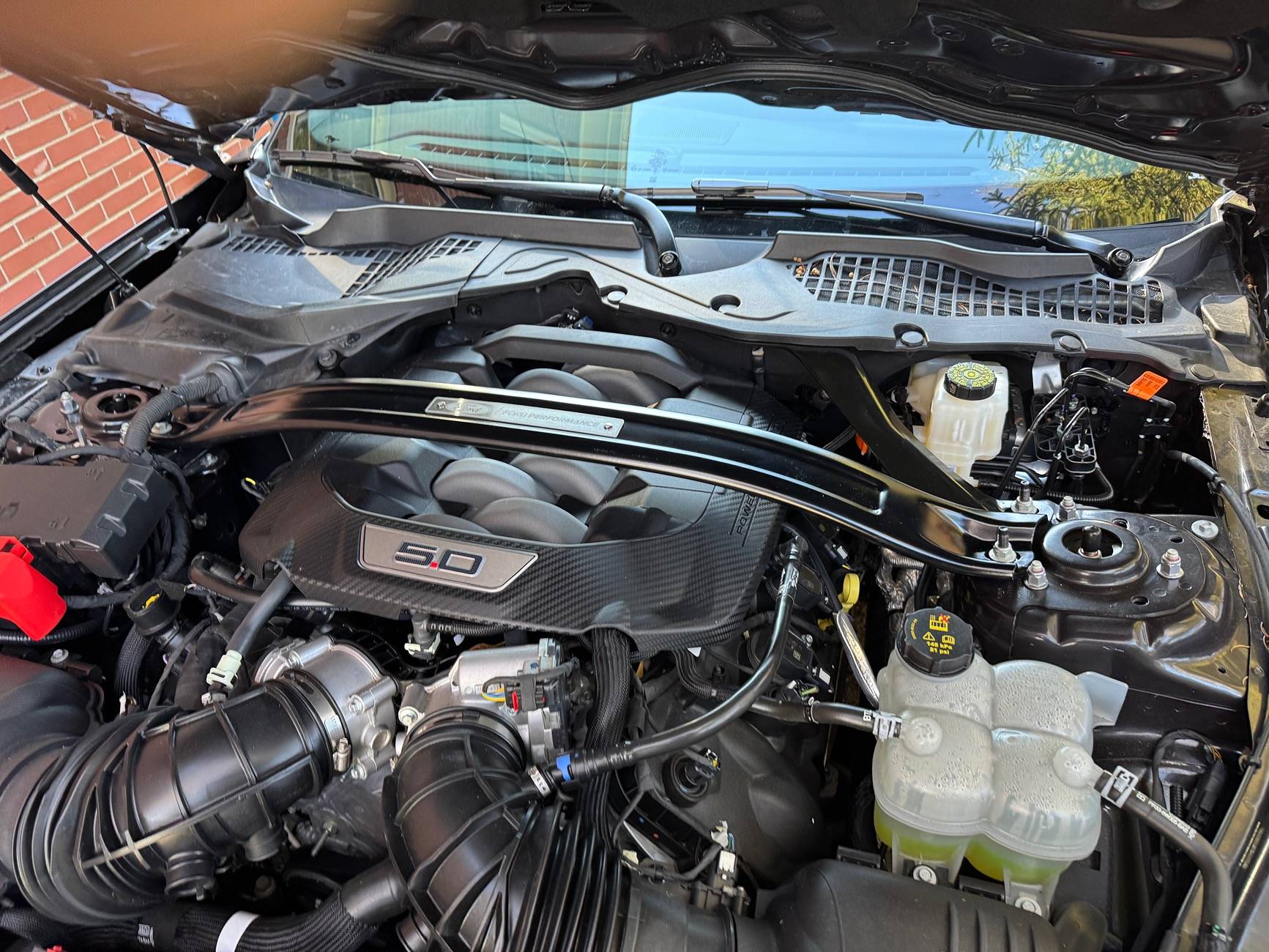

Installed kit - comes with both the steel cowl extension and the strut tower brace, along with 4 nuts to secure them both atop your strut towers. My car had nuts on the passenger side securing the plastic piece. Use the new nuts that come in the kit. If you already have the full steel cowl extension (only) then you are just removing the 4 nuts on your strut towers to add the strut brace on top of what you have. My 300A car had neither. So, I needed everything in the kit. The steel cowl extension dropped in first followed by the strut tower brace atop it, then the 4 nuts.

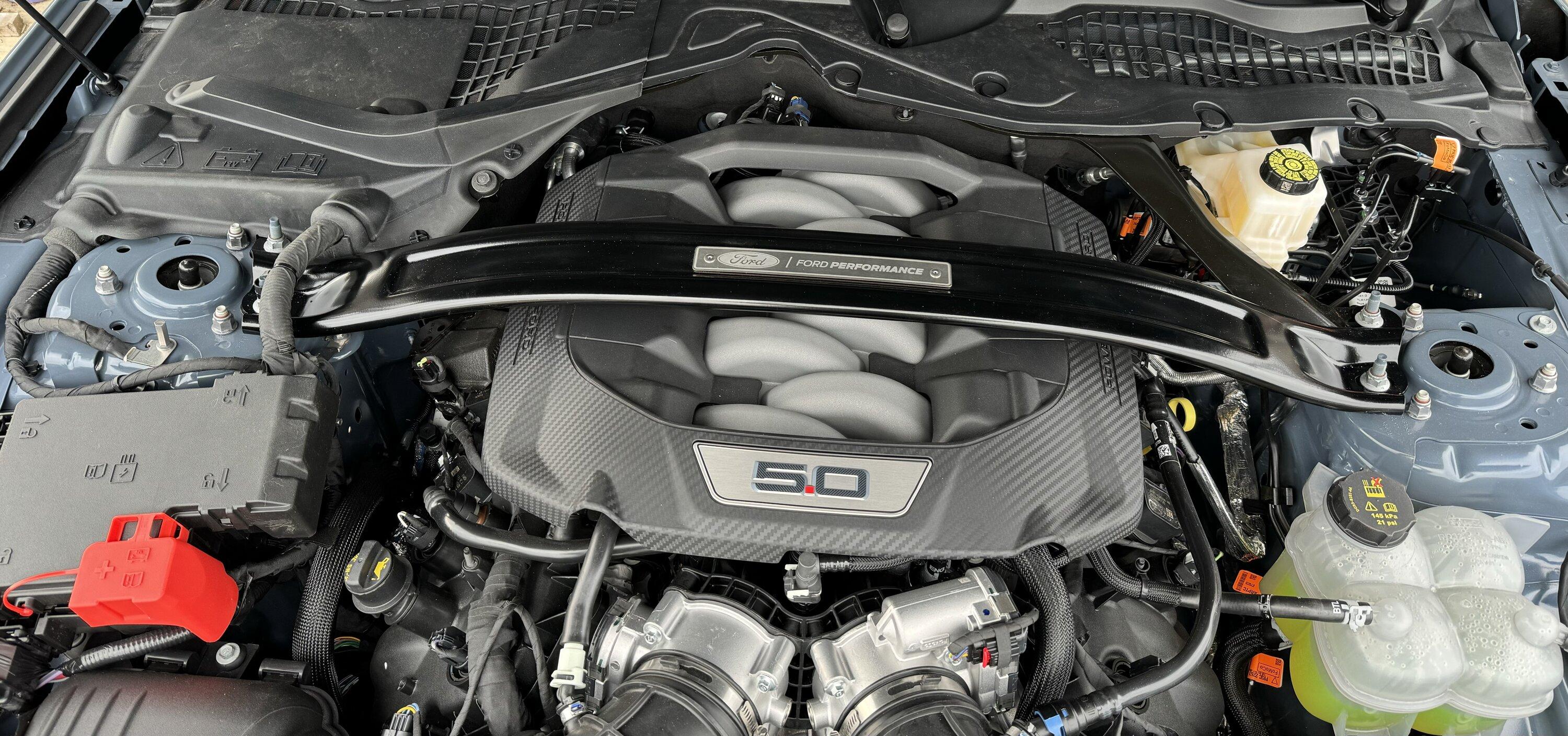

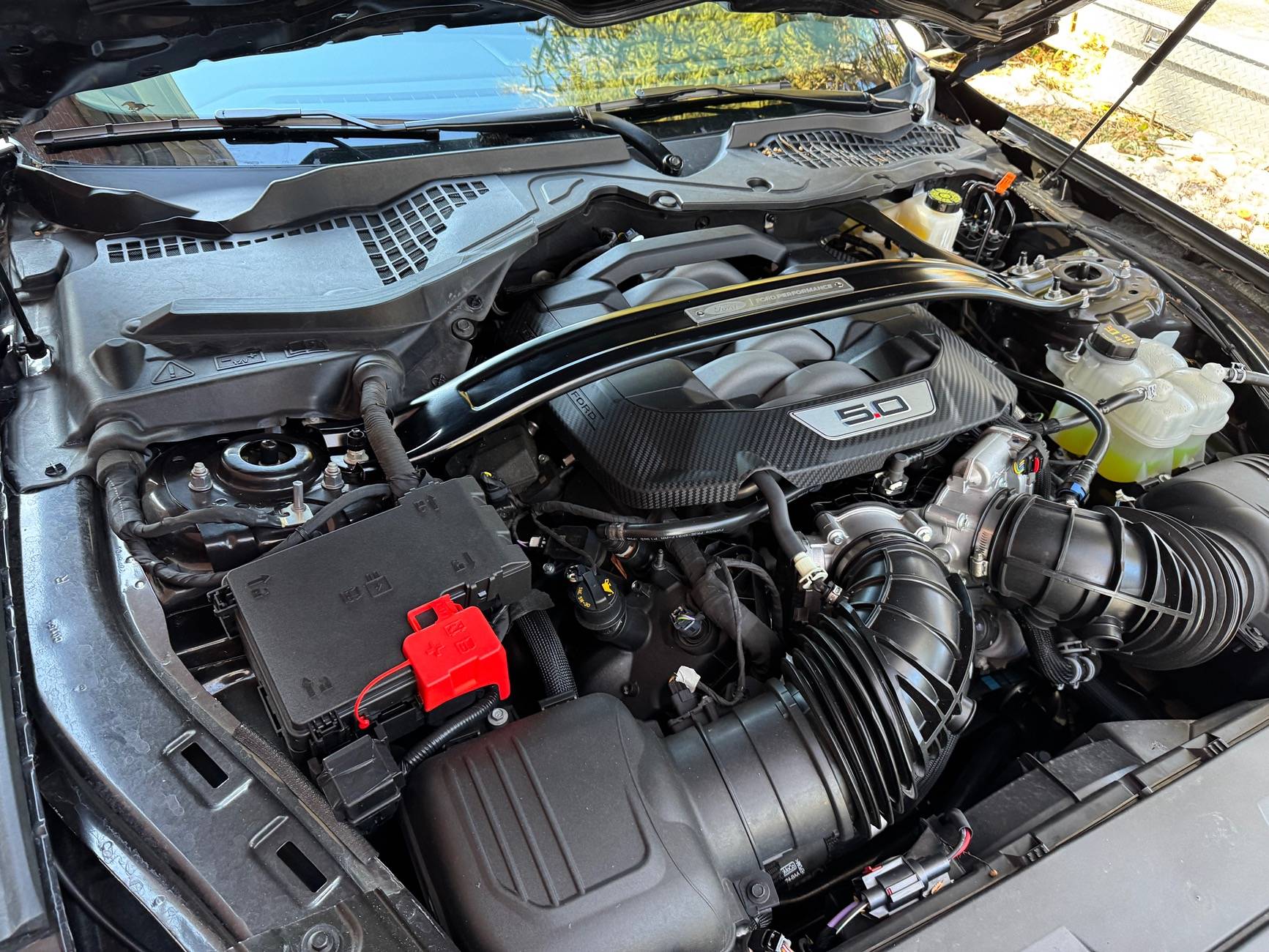

Before and after comparison - I placed the original plastic piece atop the finished work just to show you what came on my car.

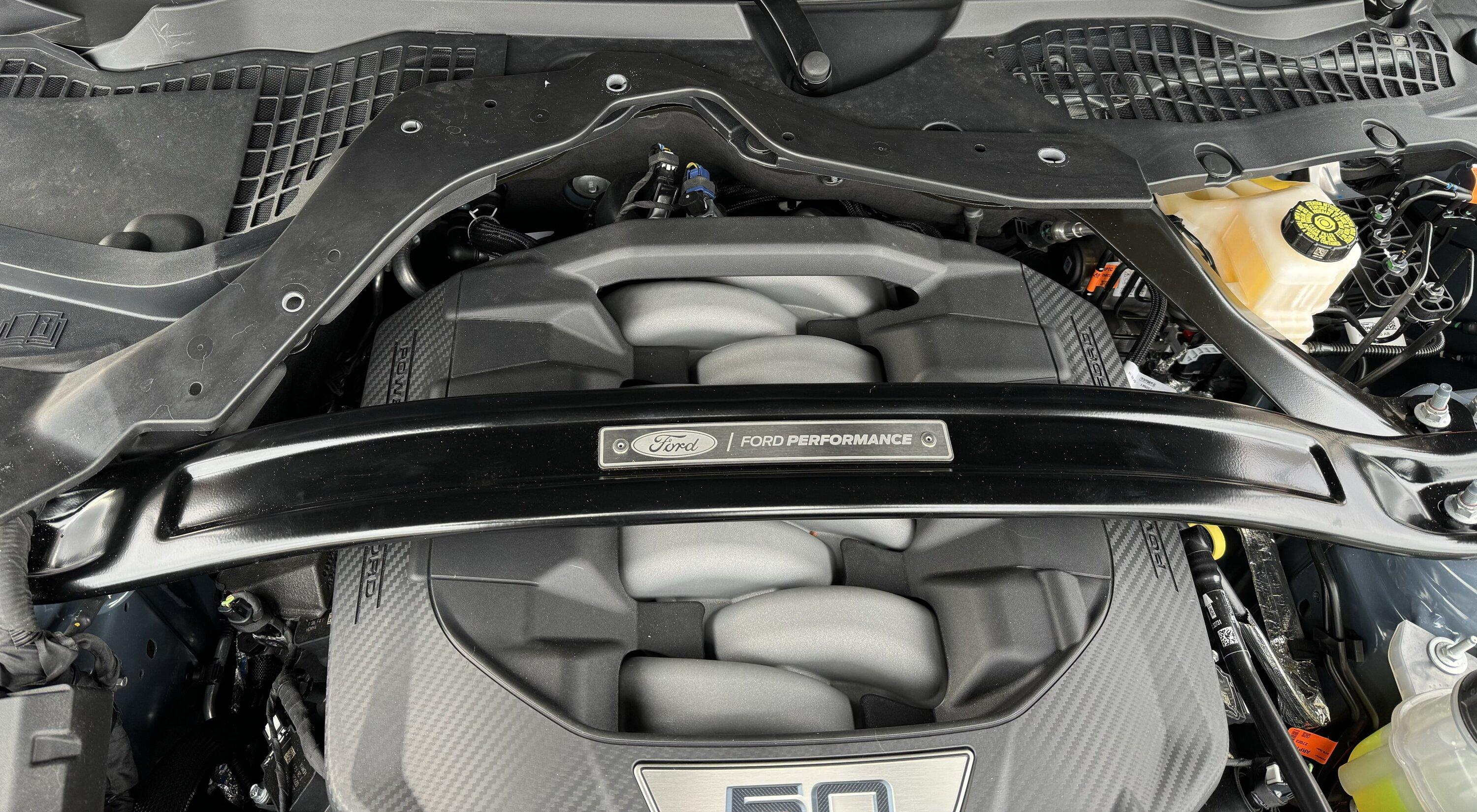

Driver’s side

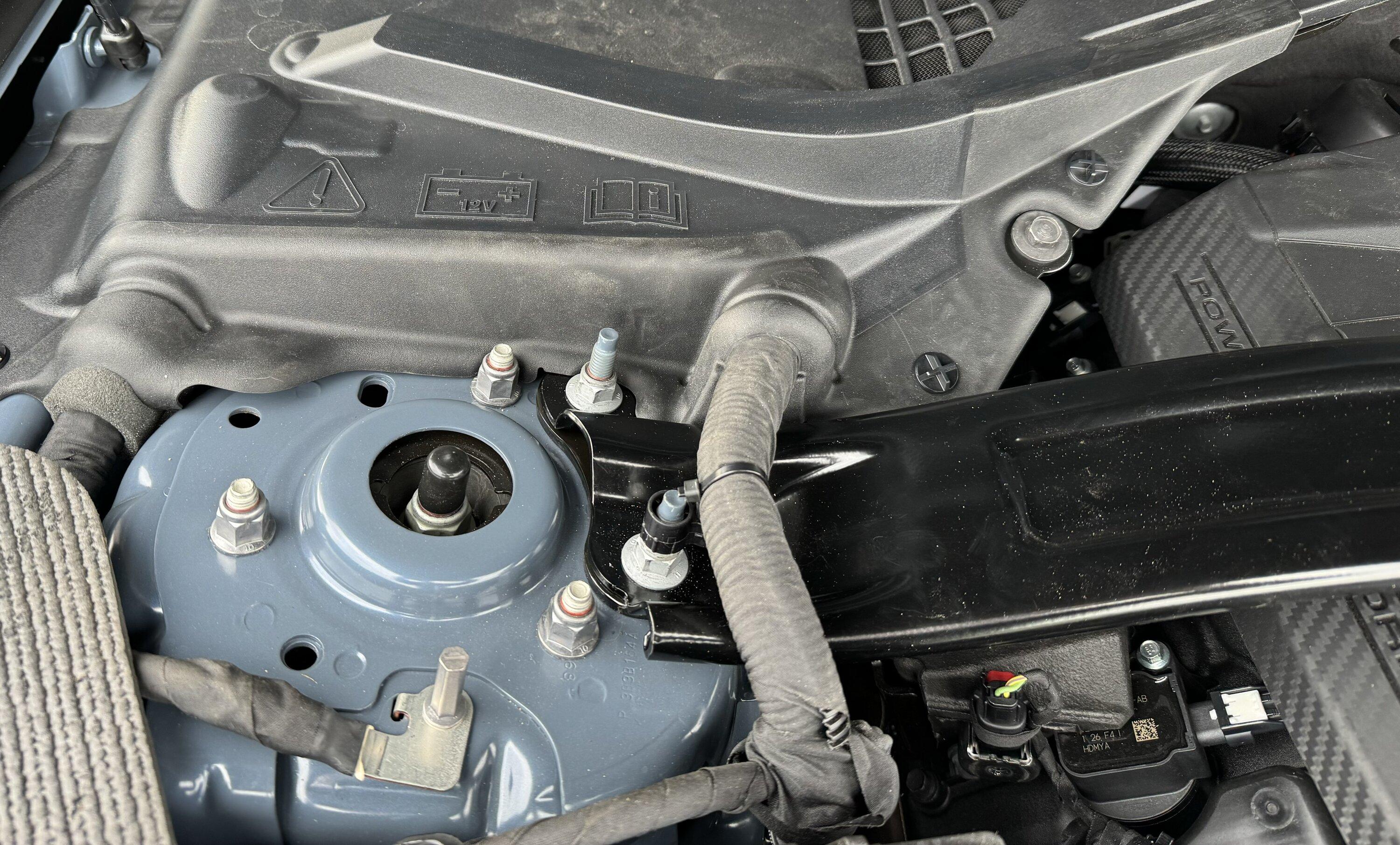

Passenger’s side. Note that you have to snip the zip tie (seen around the battery cable) to unscrew that plastic cable retainer. Use a new zip tie through the existing slot on the retainer when putting it back on. They’d say to disconnect that battery cable but I was able to slip both metal pieces in with care under it. Definitely would be easier though to have that battery cable out of the way.

Various fasteners removed. Use the blue liquid in reassembly of the 4 existing bolts and the new nuts they provide.

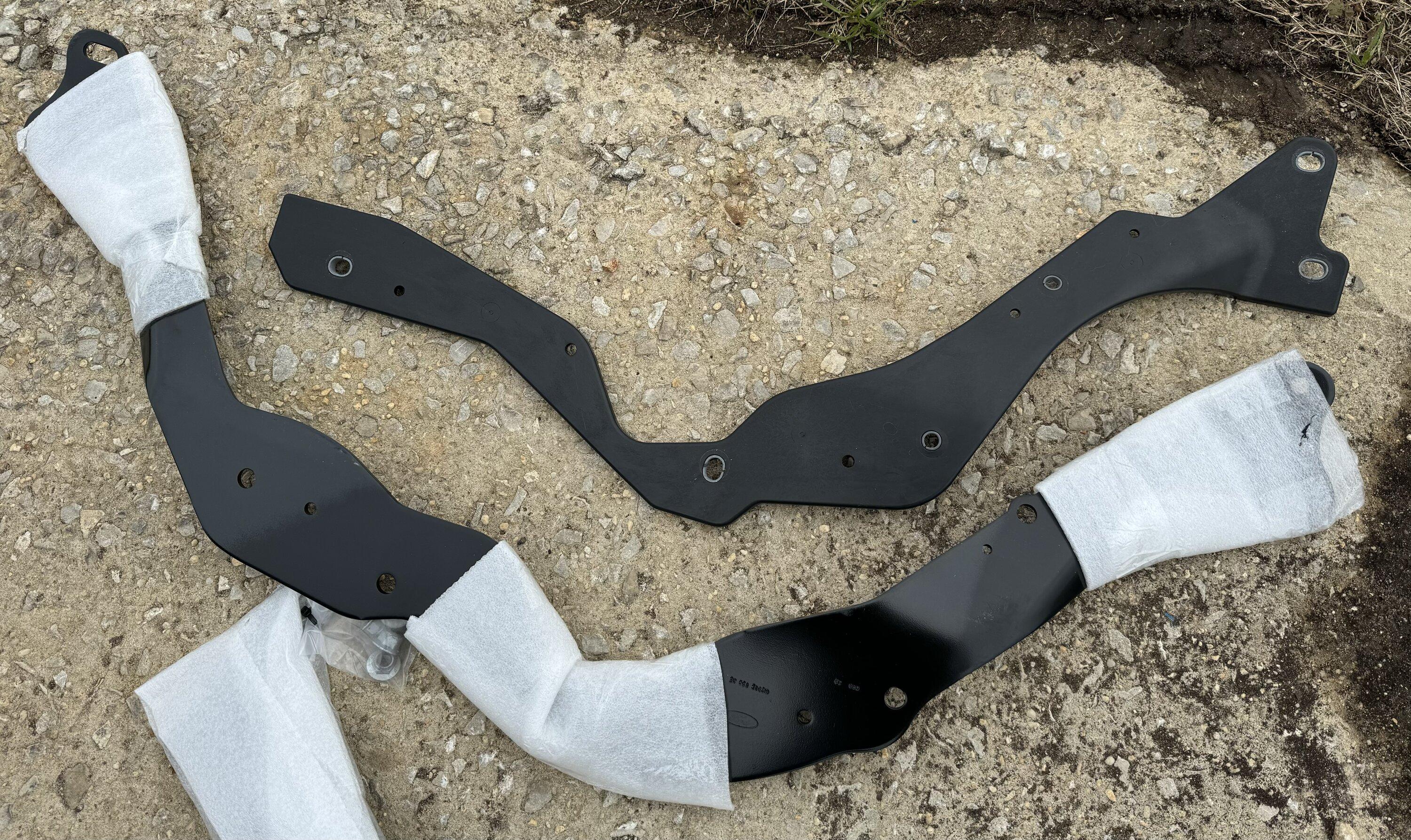

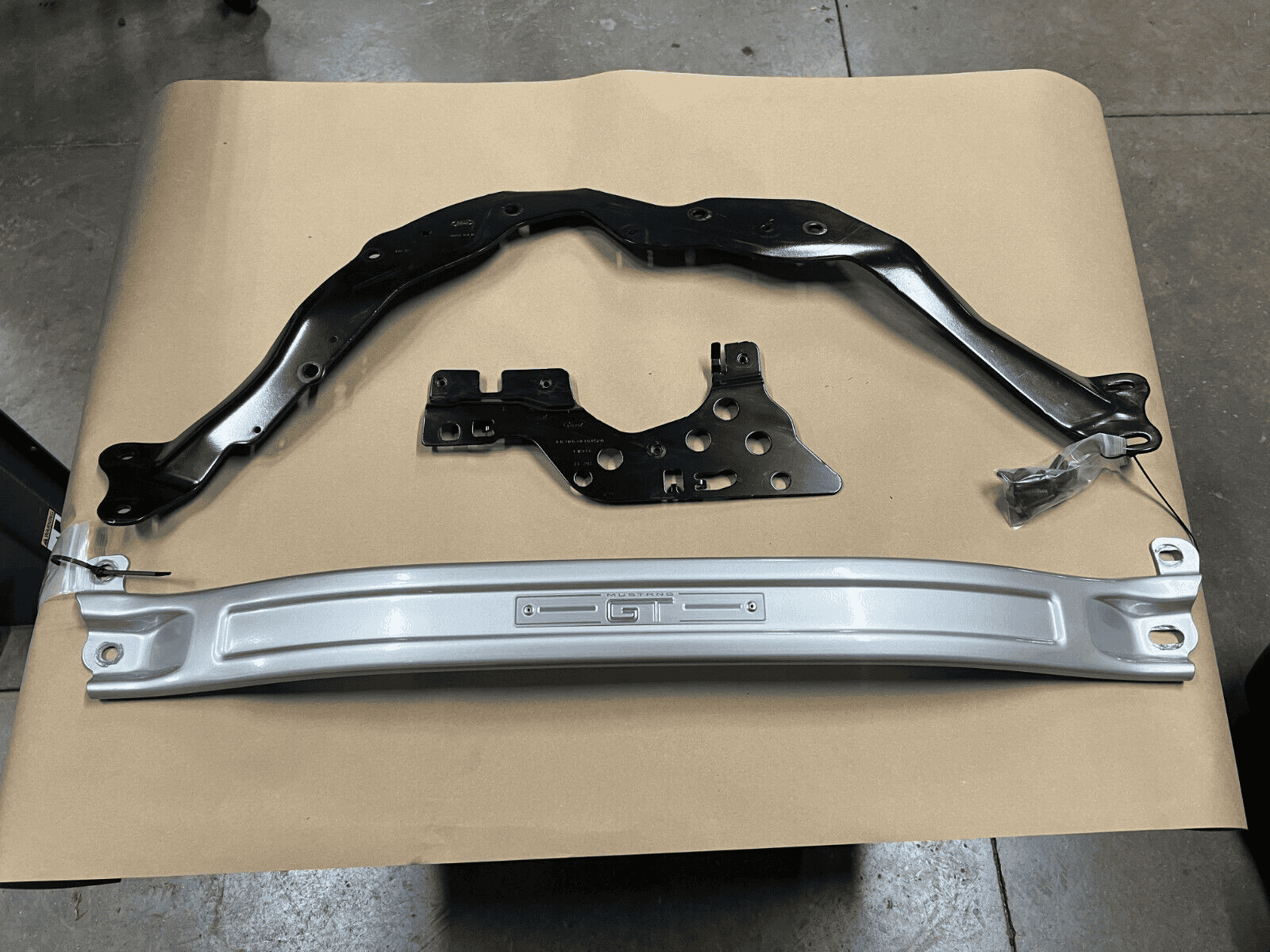

Plastic piece that came off of the car on top, steel cowl extension that replaces it is seen below it.

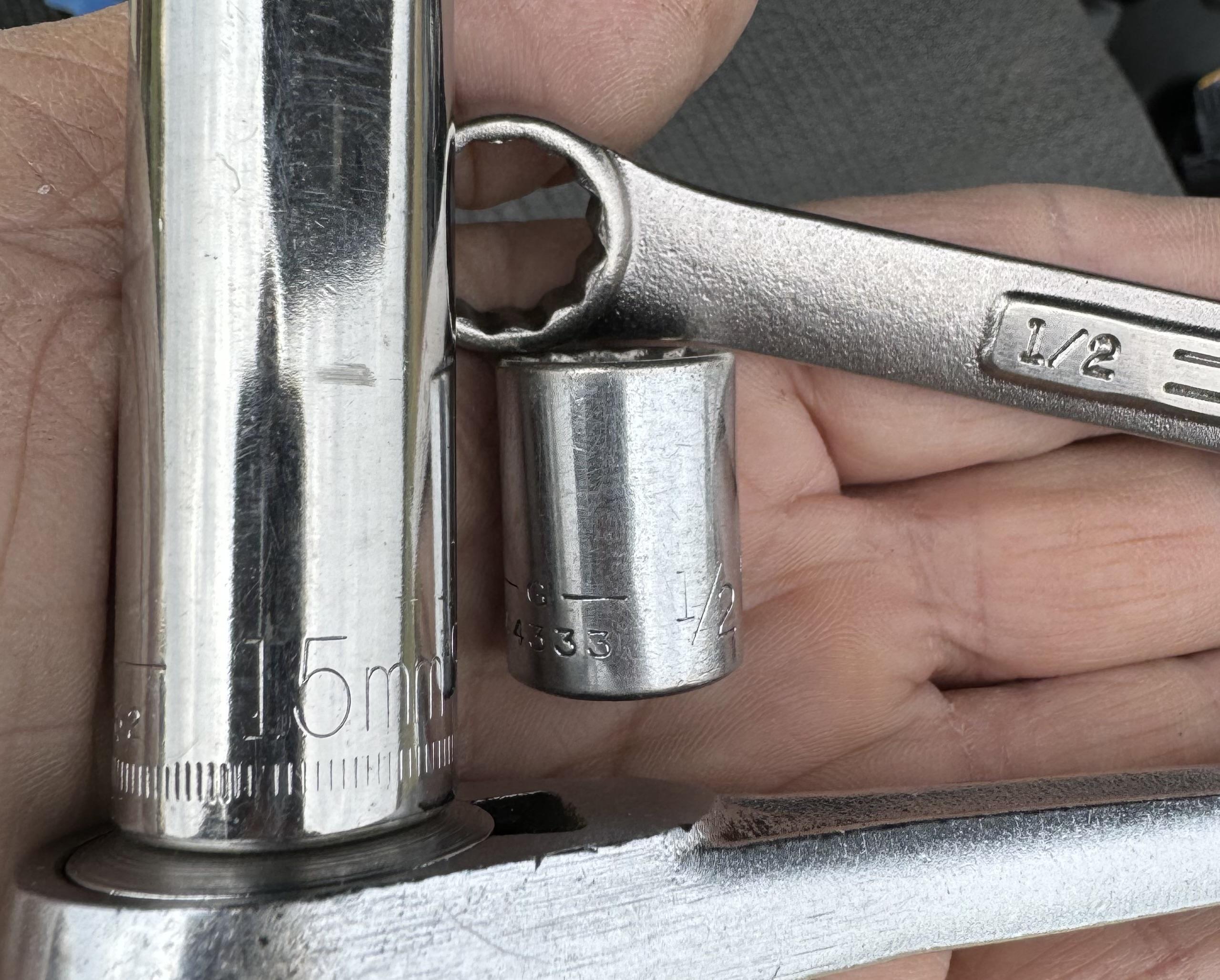

4 bolts (two under the plastic trim) take a 1/2” wrench or socket. The strut tower bolts take a 15mm deep socket.

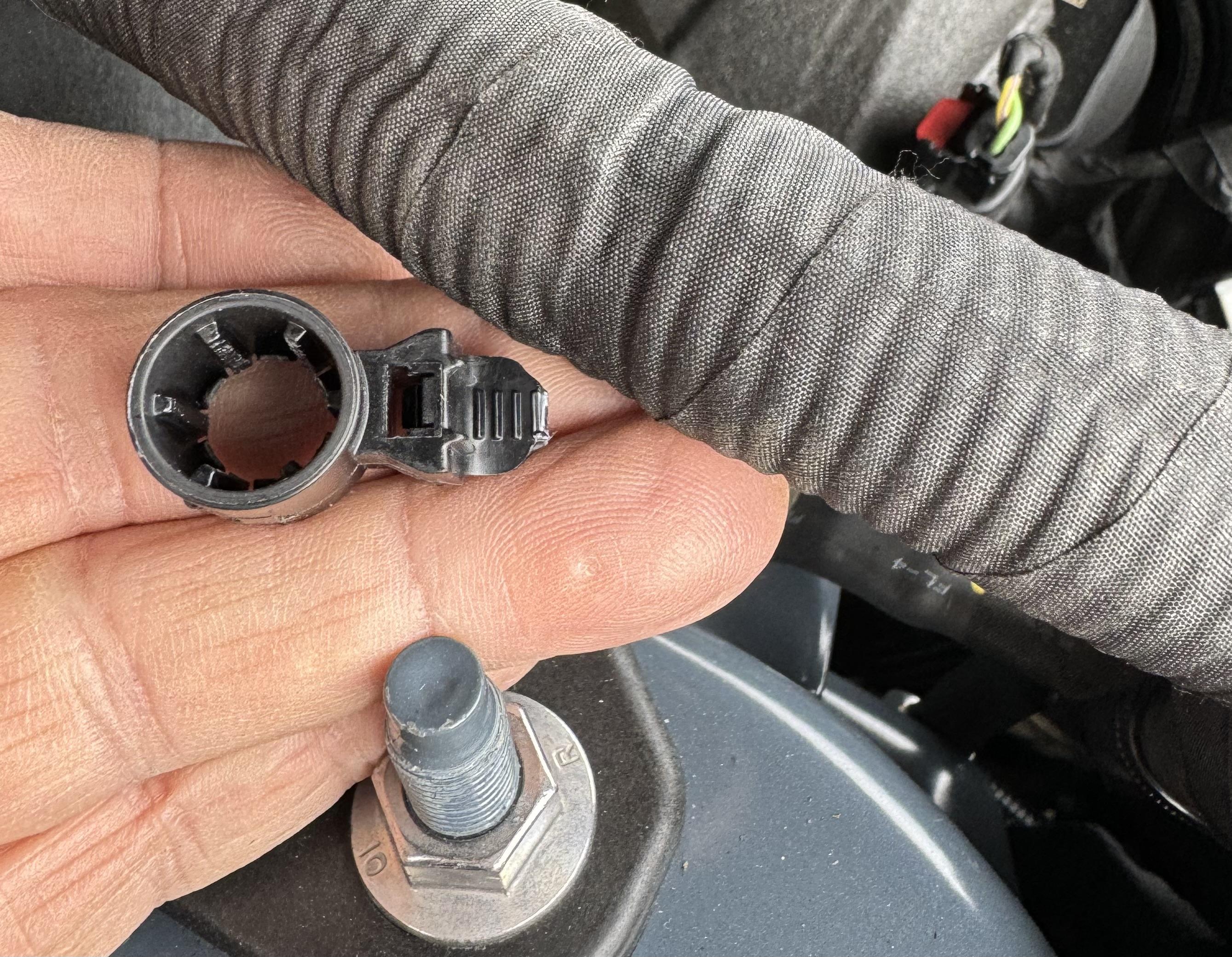

Snip the zip tie, then unscrew this plastic cable retainer. New zip tie will resecure that battery cable when you’re done

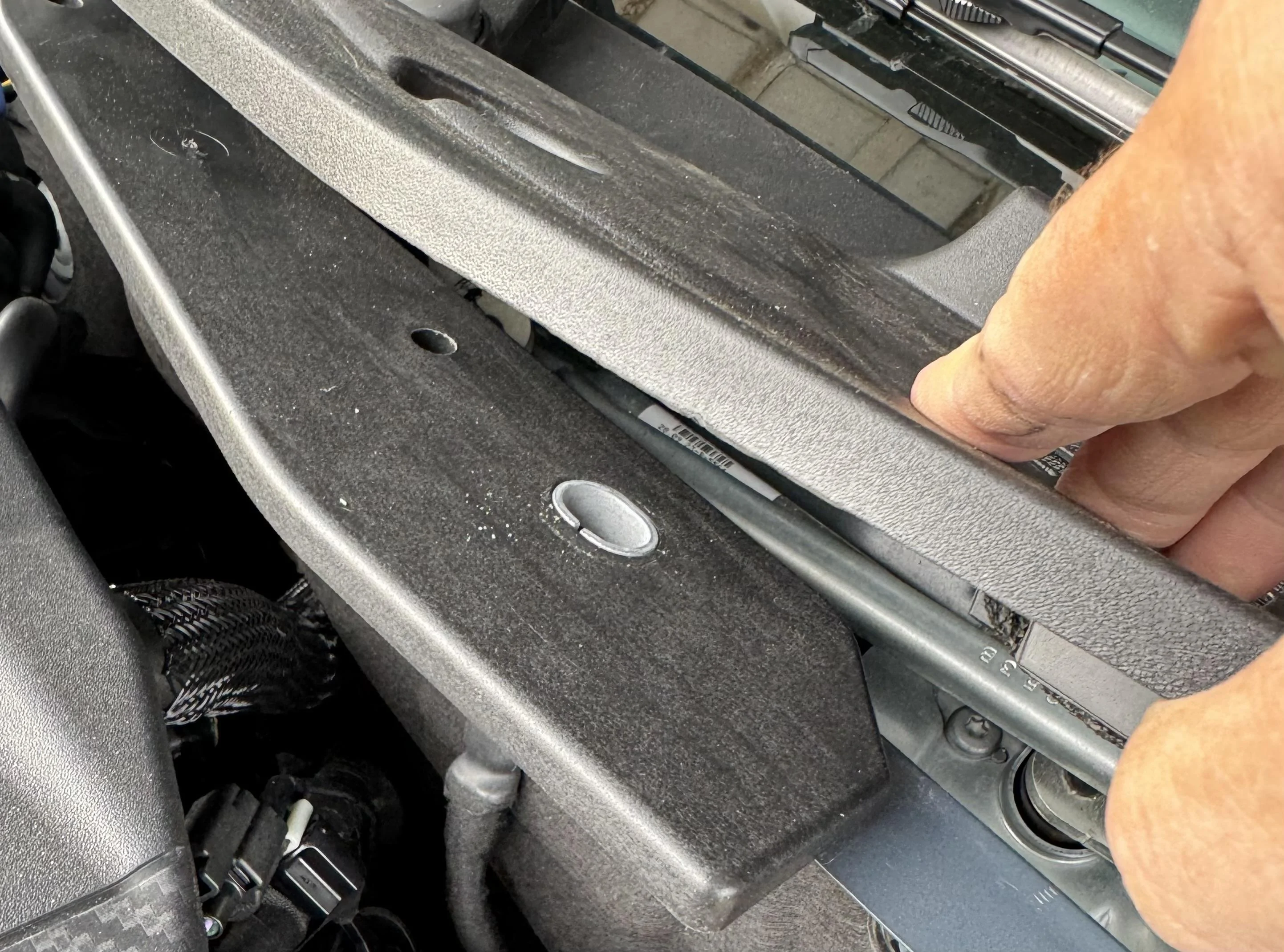

Lift up on the plenum trim piece to access two of the 4 bolts you’ll remove to get the lower plastic “1/2 K” piece out. As instructions say, you do not have to remove your wipers and take this piece off of the car - just lift up to access the two hidden (of 4 total) bolts.
