Happy Friday fellow enthusiasts. its with great honor and and privilege that we officially introduce Project 6GR wheels on the new S650 Mustang
The seventh generation 2024 Ford Mustang brings new looks, trim levels, performance, and technology to the celebrated nameplate
The fourth-generation Coyote V-8 gets some updates of its own for S650 duty, including a new dual-intake system, an updated exhaust header, and forged connecting rods. Ford has also fit the V-8 with a new dual-injection setup, as well as a new calibration for 2024. Output is rated at 486 hp and 418 lb-ft of torque, making this the most potent GT model yet.

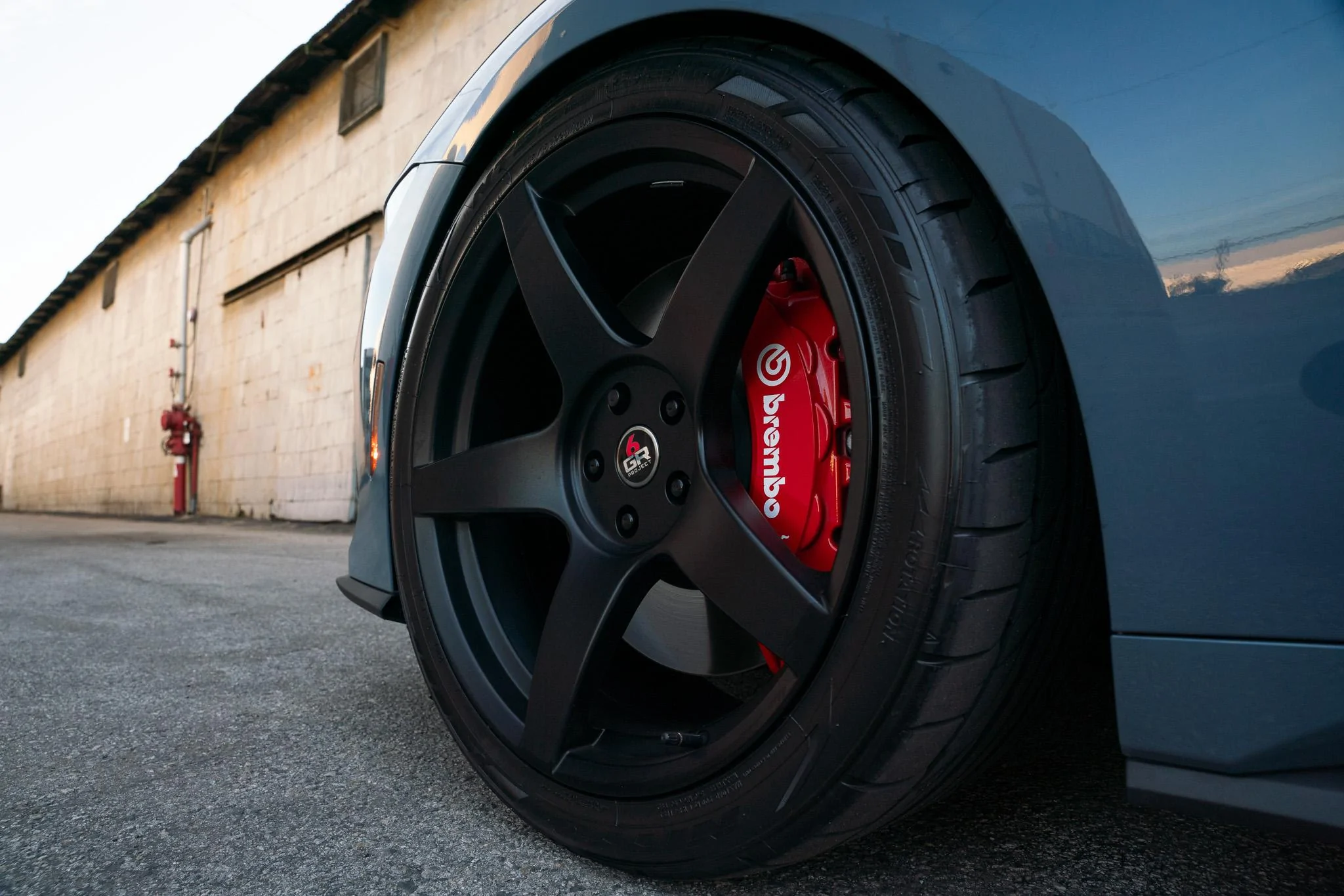

Ford once more has not overlooked the braking performance of the new S650 chassis. They have beefed up both the front and rear components. The front rotors measure 390mm (15.35") and 355mm (13.97") Rear with a 6 piston larger Brembo caliper front and 4 piston larger Brembos on the rear. The increase in size to both components leaves us with less room to work with in terms of wheel design and diameter constraints.
We are happy to report that we have had the pleasure of spending time test fitting the all new S650 thanks to our good friend and 6GR family member Eric from Nytop.store. Beautifully equipped Mustang GT 5.0 with Performance Package, dual quad tip exhaust, largest Brembo package, and finished in shadow black with two tone red interior. Besides the Recaro seats, it's fully optioned.
Through our test fitments with both 19" and 20" diameters and widths ranging from 10.0" on the front and as wide as 12.0" on the rear. We are excited to report that we will maintain our current deep concave design with the S650 chassis. Despite the much larger Brembo calipers and larger rotors, we are able to clear them both on an overall diameter standpoint and x-factor (wheel offset and wheel spoke design). Here is a list of the current fitments we will be offering for the S650 chassis.
Fitment Options
19x10.0 Front & 19x11.0 Rear
19x10.0 Front & 19x11.5 Rear
19x11.0 Front & 19x11.5 Rear
19x11.0 Front & 19x12.0 Rear *Dark Horse setup with fender extensions*
20x10.0 Front & 20x11.0 Rear
20x10.0 Front & 20x11.5 Rear
20x11.0 Front & 20x11.5 Rear
We look forward to meeting and working with a lot of new members and reconnecting with returning members of this great community!

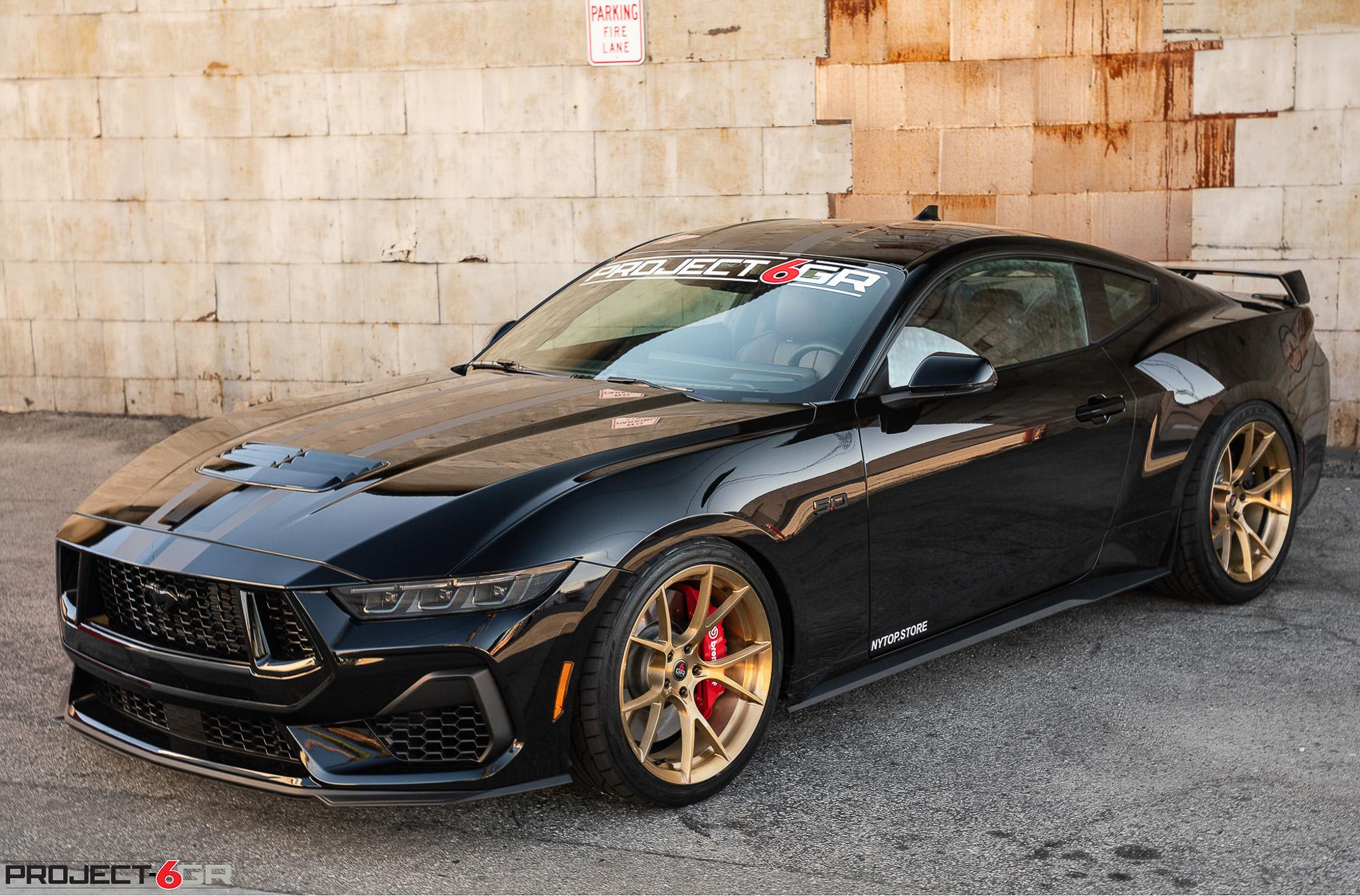

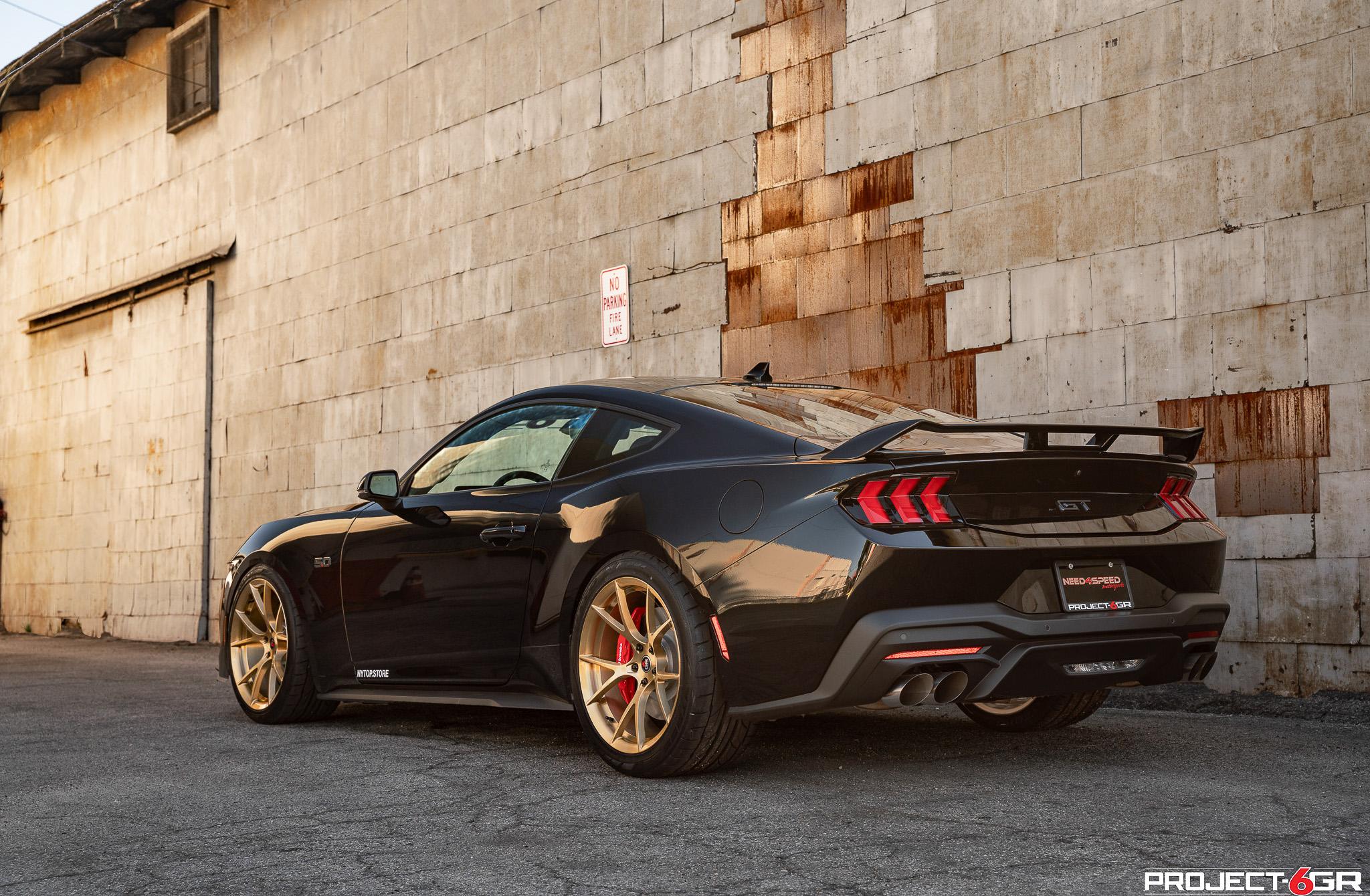

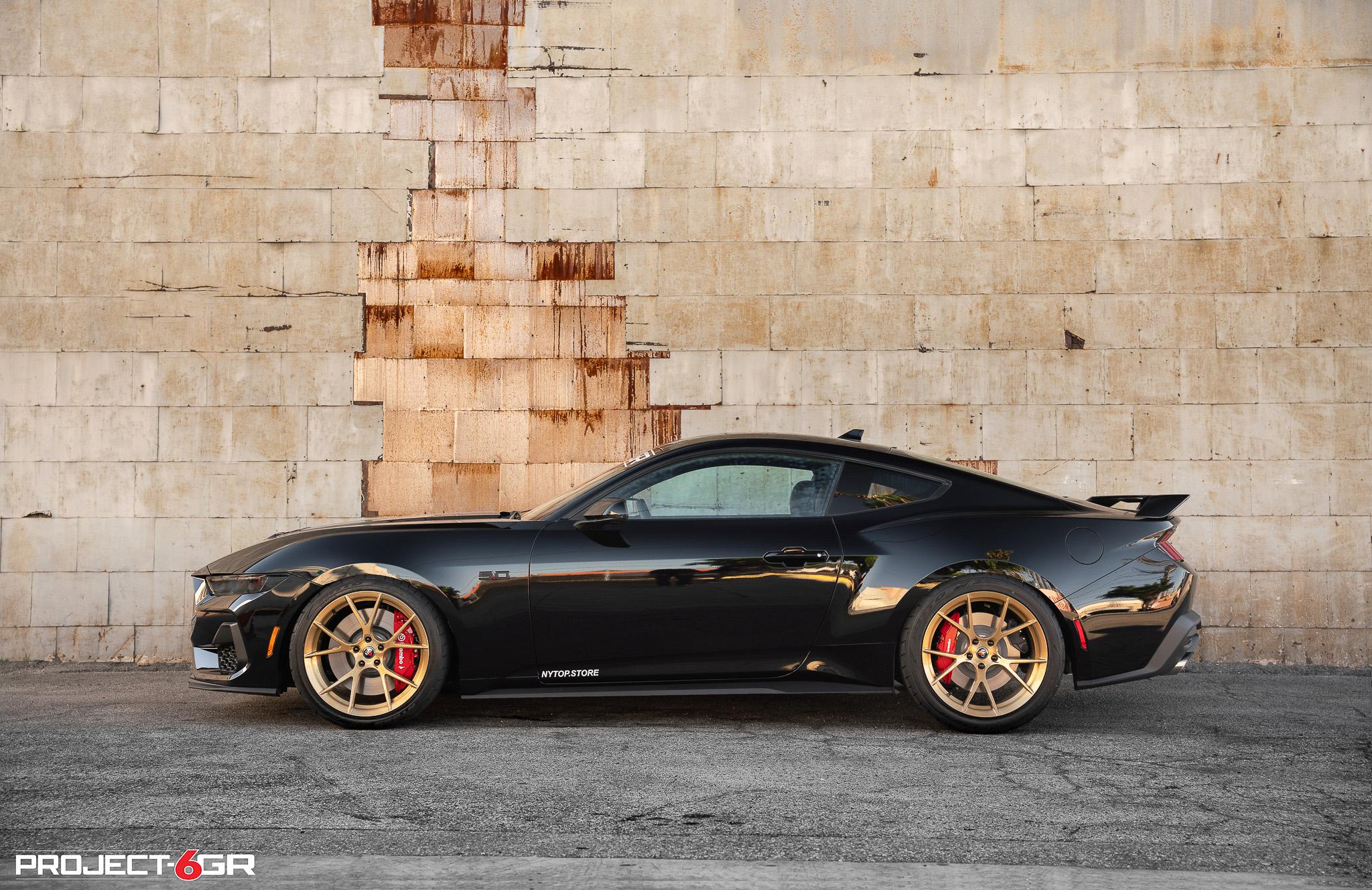

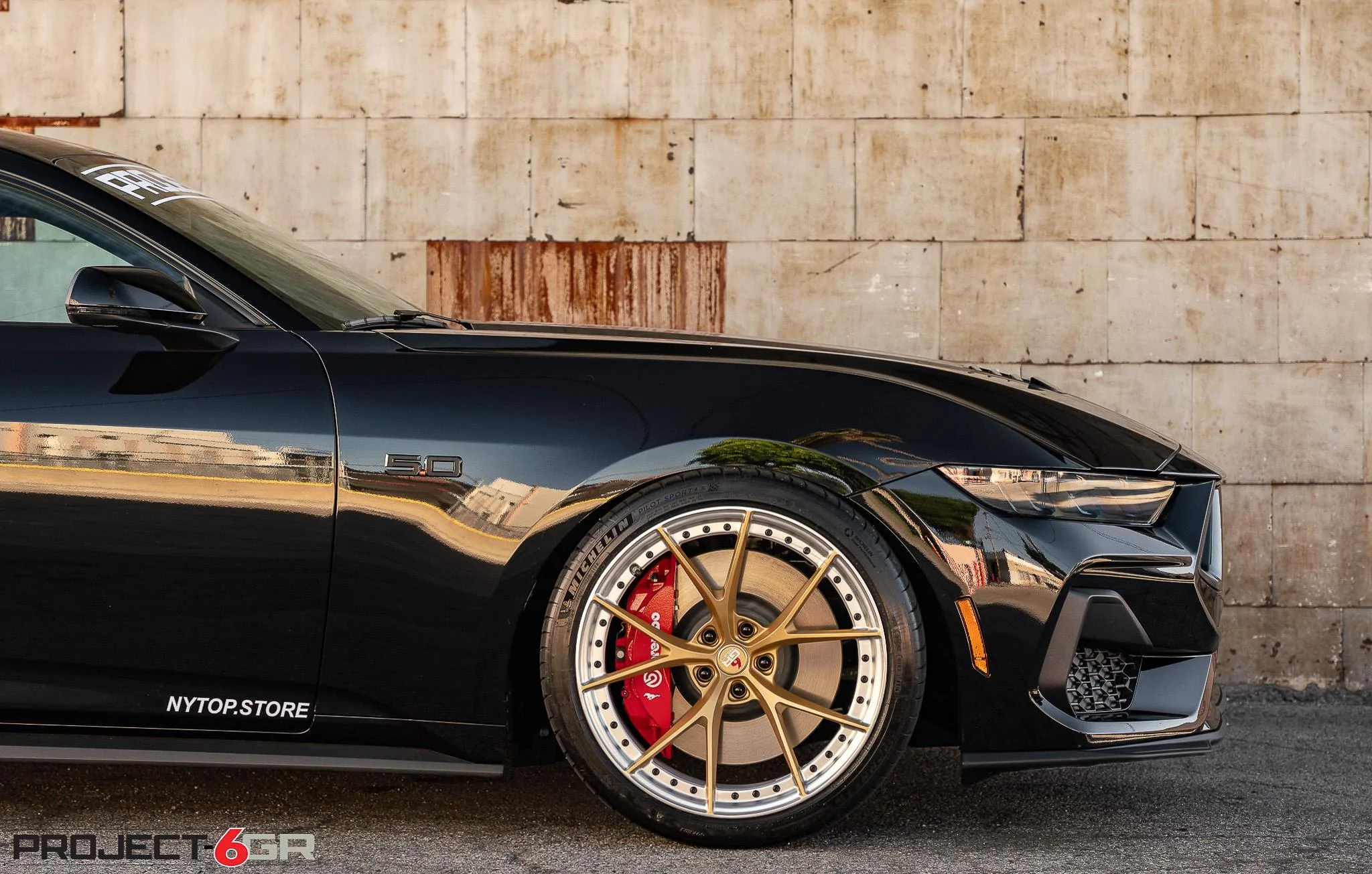

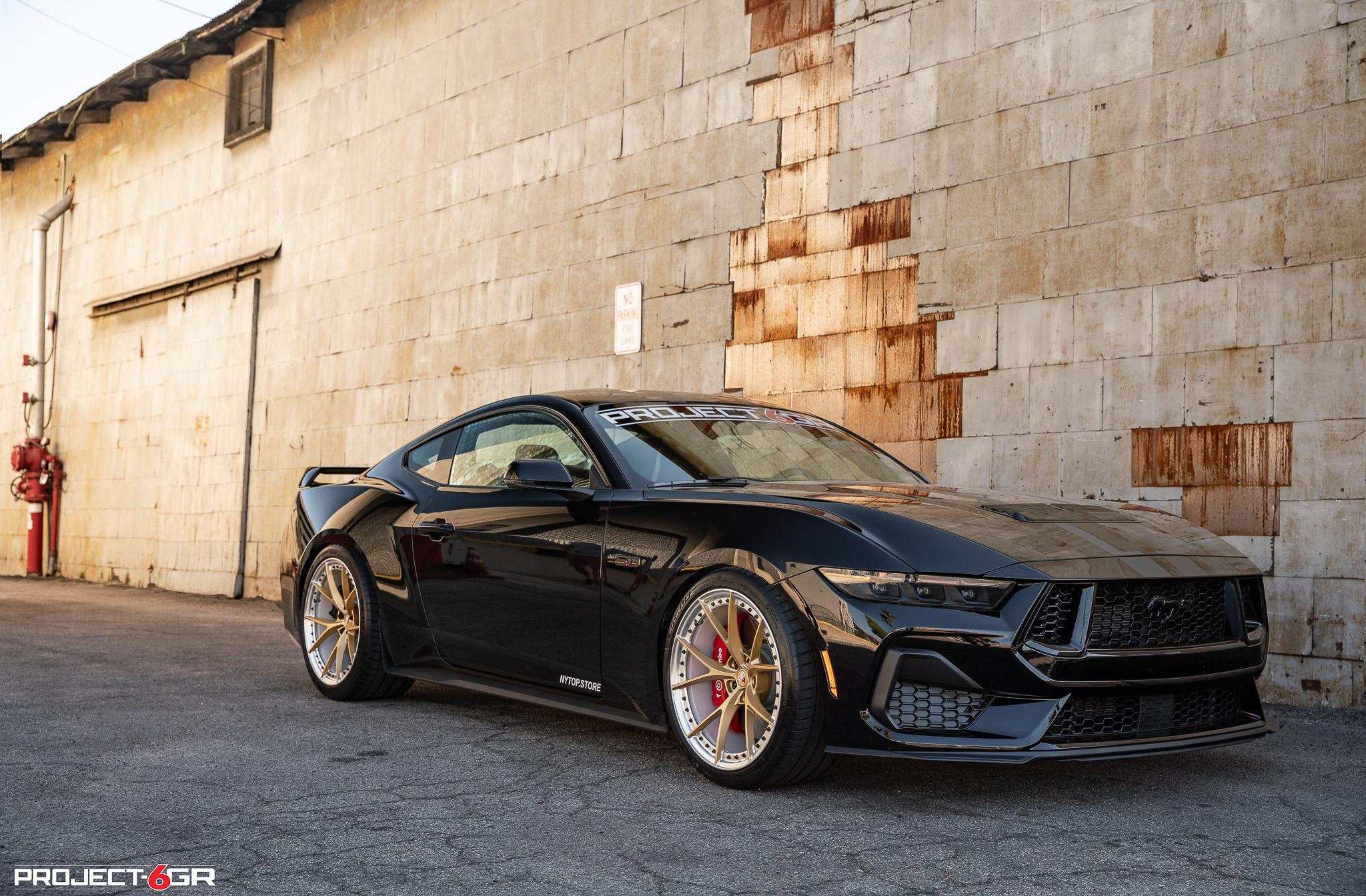

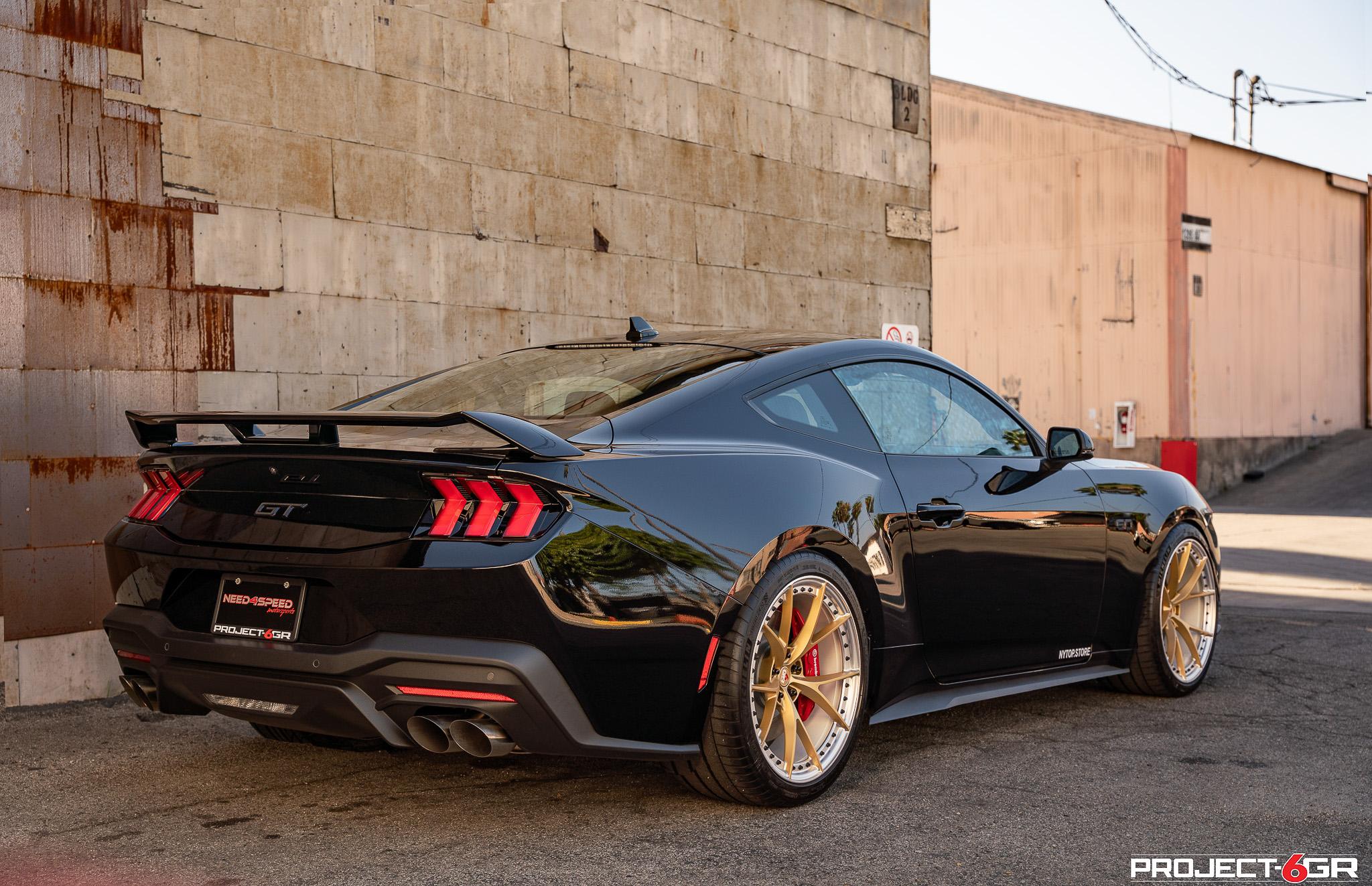

PROJECT6GR- TEN- R FULLY FORGED SATIN GOLD

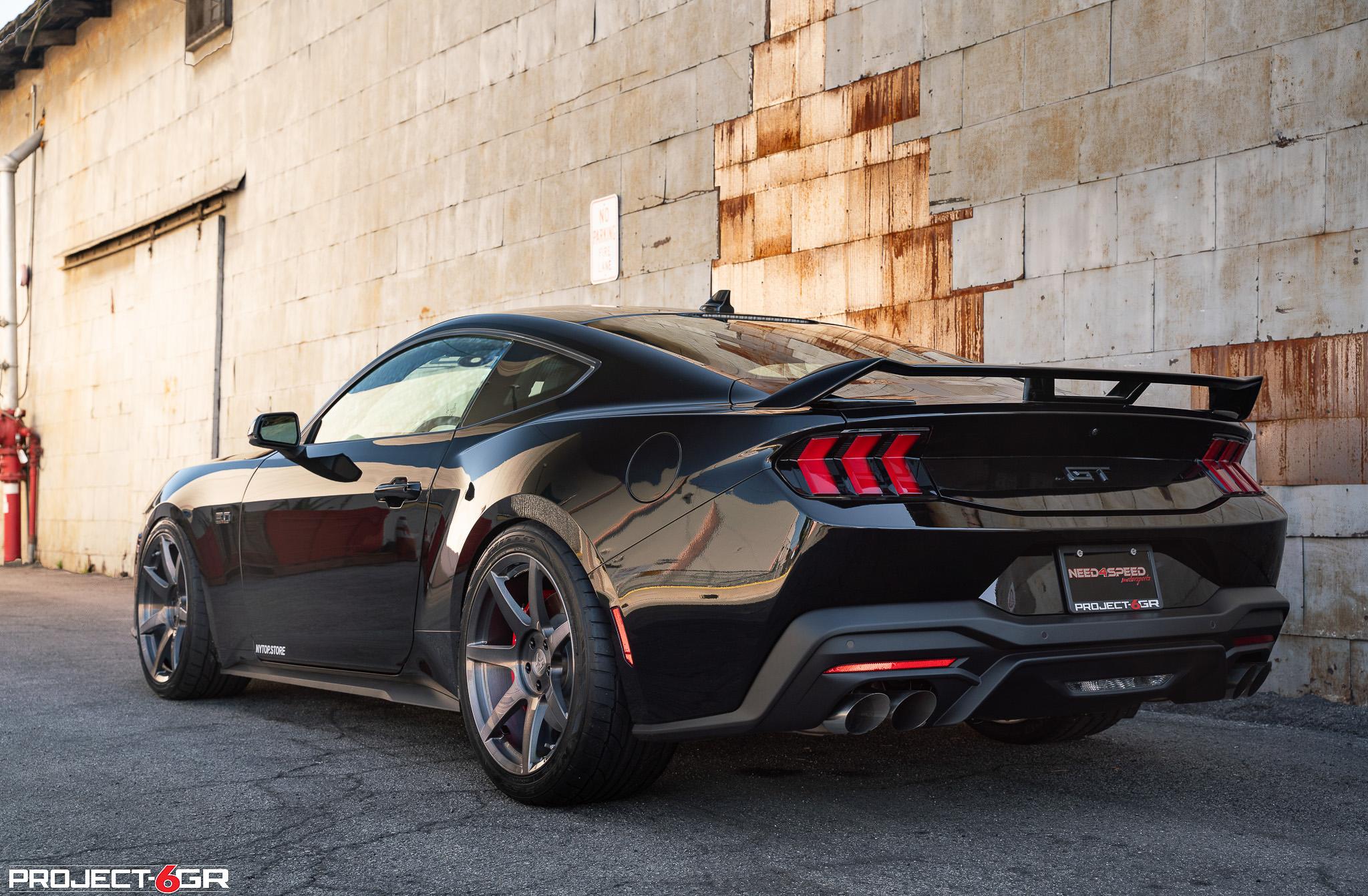

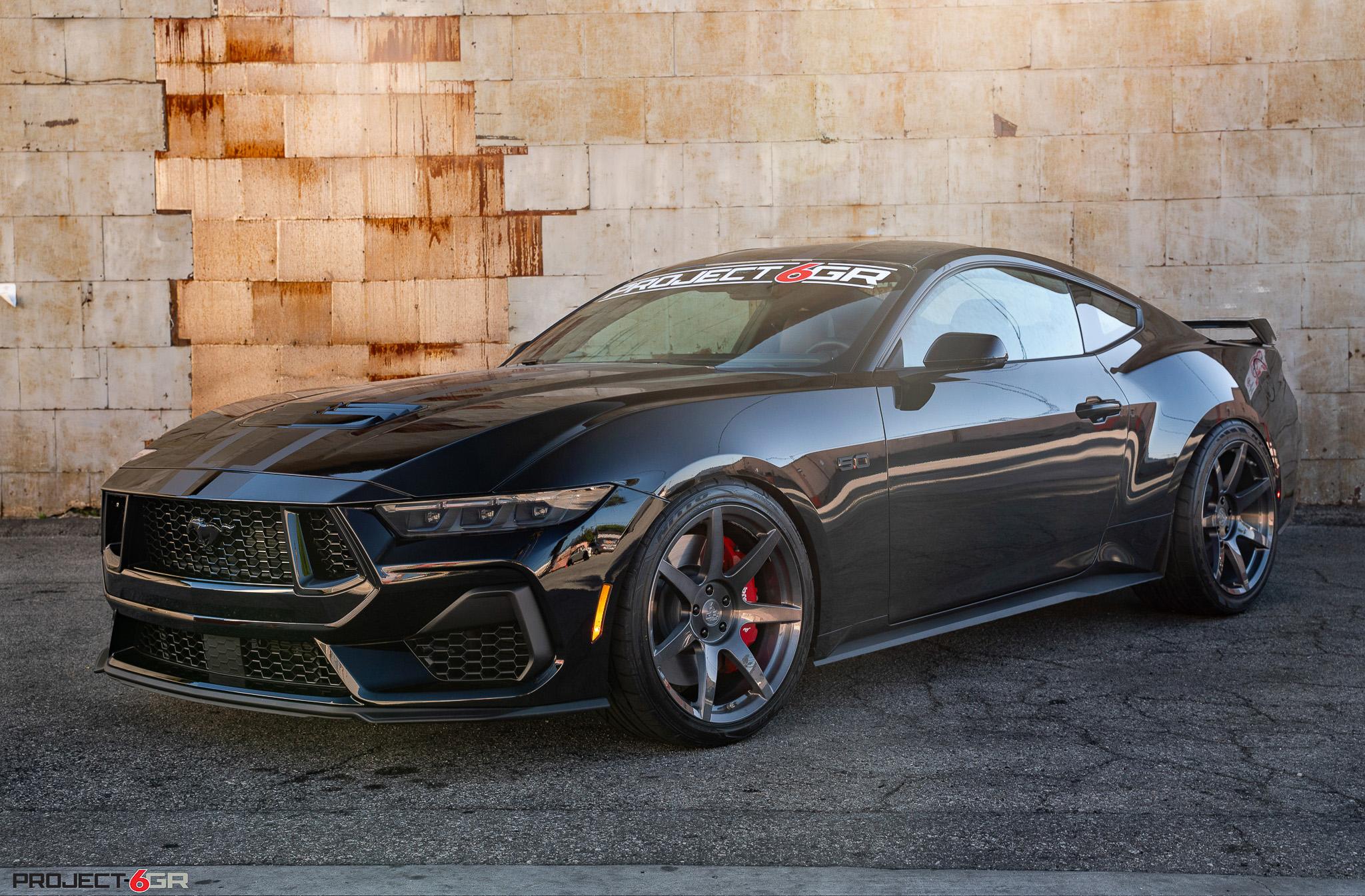

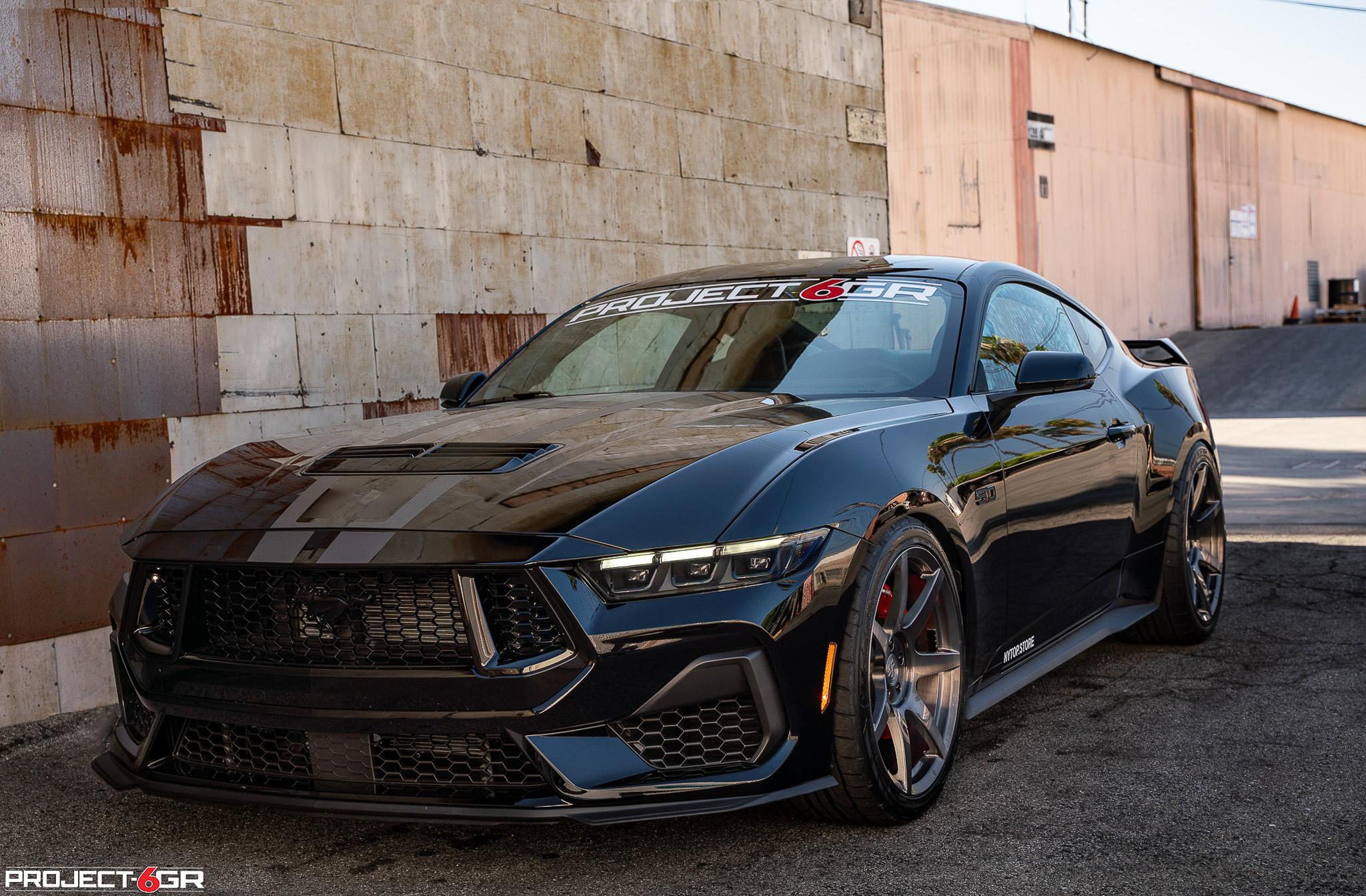

PROJECT6GR-SEVEN SPOKE BRUSHED TITANIUM

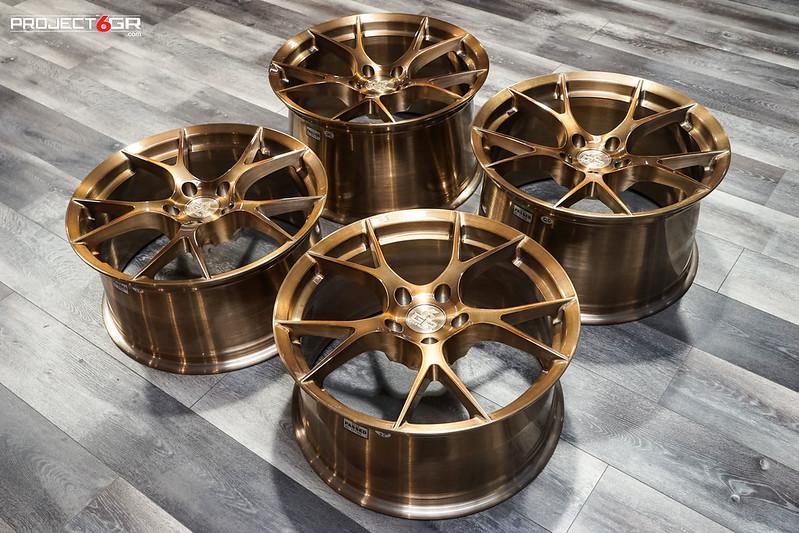

PROJECT6GR - TEN FULLY FORGED 20'' BRONZOLD

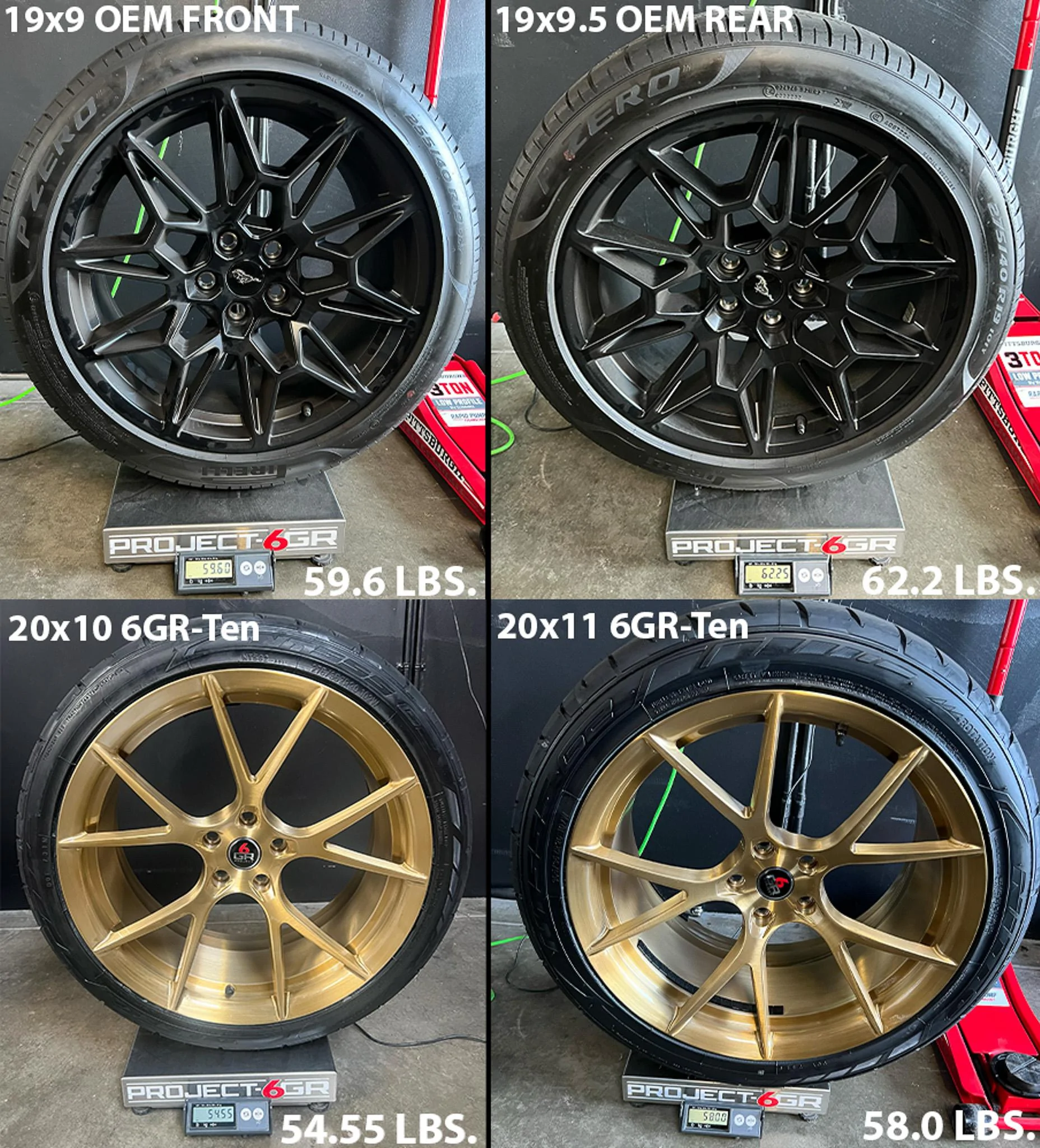

Weight Comparison
While increasing width and diameter in both wheel and tire size
We are able to accomplish a weight savings of 18.6lbs all around in rotational mass
OEM Factory Ford Wheel Specs
Front: 19x9 255/40/19 59.60 lbs.
Rear: 19x9.5 275/40/19 62.25 lbs.
Project6GR Wheel Specs
Front: 20x10 275/35/20 54.55 lbs.
Rear: 20x11 305/35/20 58.00 lbs.
Front Wheel and Tire Weight Savings 5.05 lbs. Each
Rear Wheel And Tire Weight Savings 4.25 lbs. Each
Total Weight Savings 18.6 lbs. Unsprung Rotational Mass
How to Place Your Order
Phone International: 1-818-547-5474
E-mail: [email protected]
Hours of Operation:
Monday through Friday from 8:00 a.m. to 6:00 p.m. PST
Saturday from 9:00 a.m. to 3:00 p.m. Pacific PST
Our website is open 24 hours a day / 365 days a year!
Contact Information:
Phone: 1-888-714-7467 Toll-Free
Email: [email protected]
Website: project6gr.com
CHAT IN TO SPEAK TO A LIVE REP!
If you have any questions or concerns, do not hesitate to contact us. We are here to help you!
Sponsored
. also, glad to see you guys making 19X11F, 19X12R an officially supported size!
