For whatever reason, Ford is sometimes reluctant to release data until they absolutely have to. I enjoyed forcing their hand with the GTD by digging it up via the EPA application when they didn't want the vehicle weight to be released for as long as possible. Seems they chose to do it again with the 2026 Dark Horse SC by holding the Certificate of Conformity back such that the weight wouldn't be revealed until the last minute. Federal law requires that a conformity certificate be obtained and available prior to the first delivery to the public. Buried in that law however, are ways that automakers can request that data be withheld from the public domain for specific reasons but only until and no later than that first delivery.

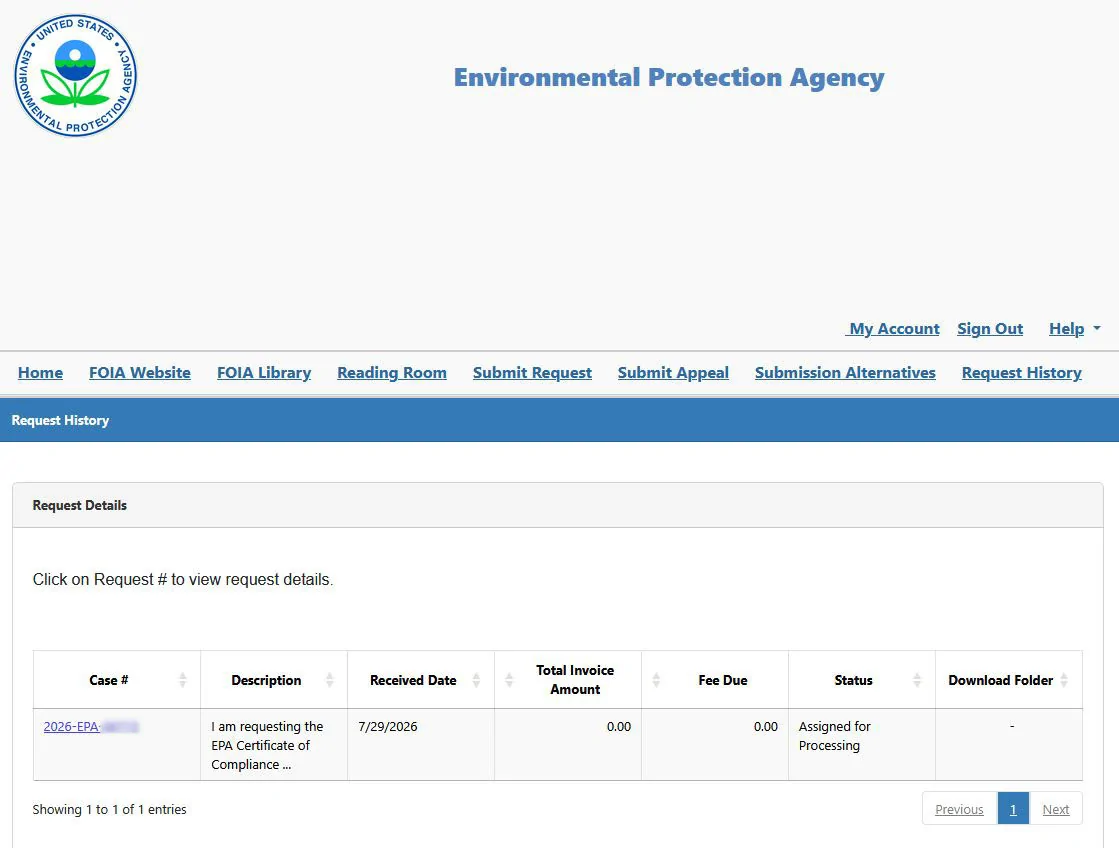

So for the past few months I would look at the EPA (CARB as well) site for the application/certification and it wouldn't populate. The 5.2 engine group for the GTD and the Raptor R were there but no DH SC. That got boring so I filed a FOIA request with the EPA for the certificate as well as any and all related data.

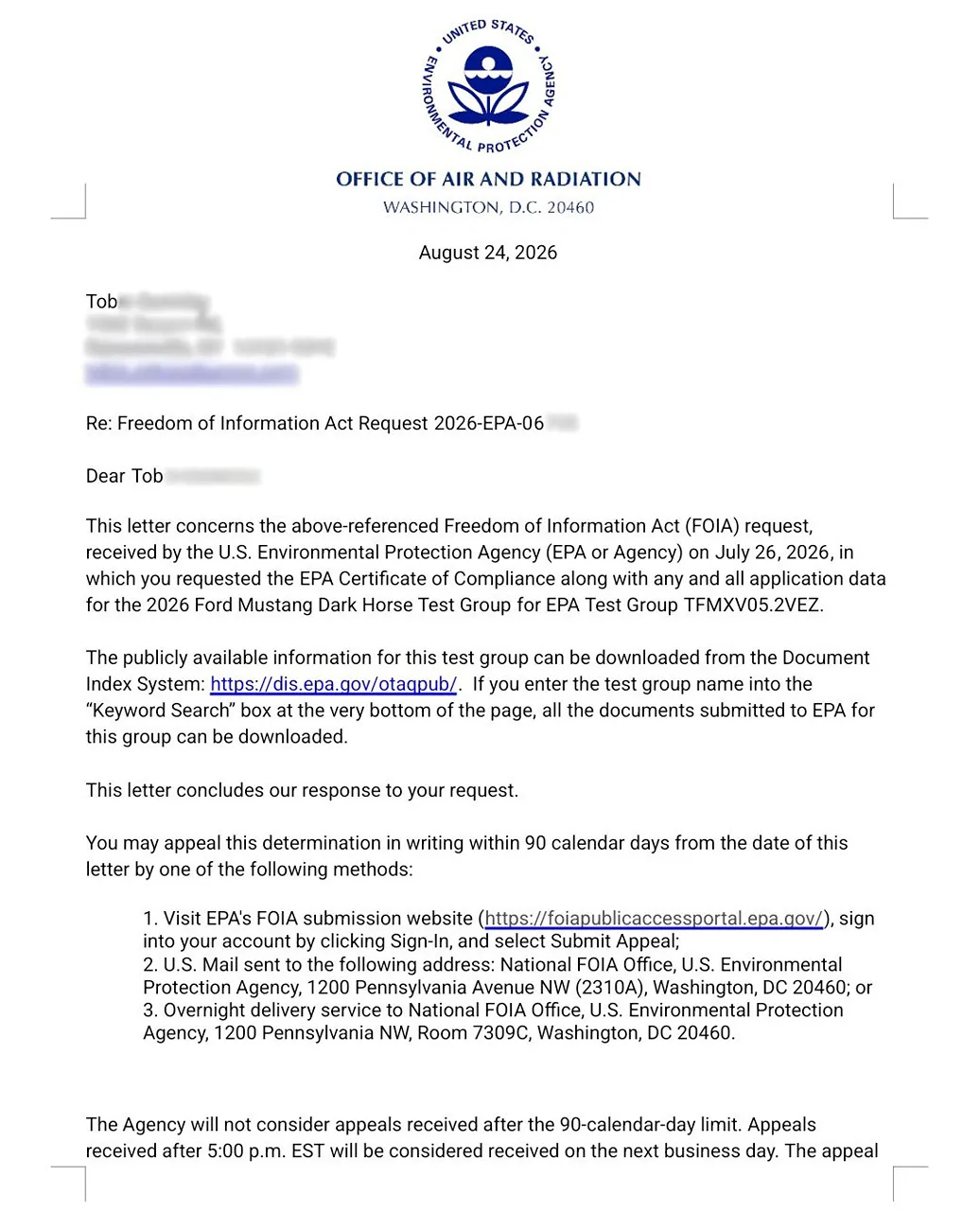

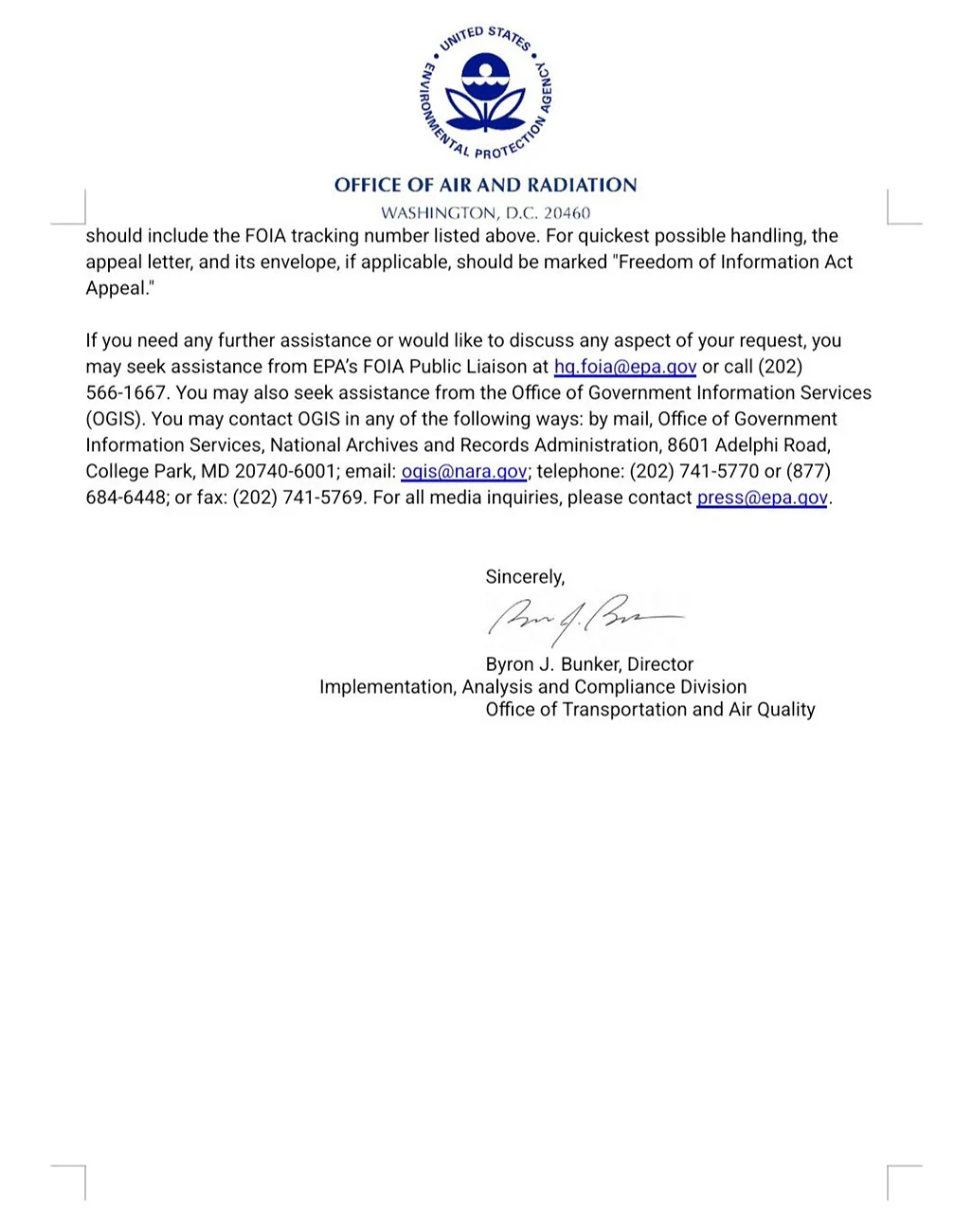

The request forced them to cough up that which they weren't ready to share as federal law makes it clear they have to address the request in a "timely" manner. I wanted them to have to share the cert with me and watch it show up on the EPA site but my request will now likely take quite a while. Friends and politicians like to dole out difficulty at times but no biggie - I'm happy they finally had to post it up.

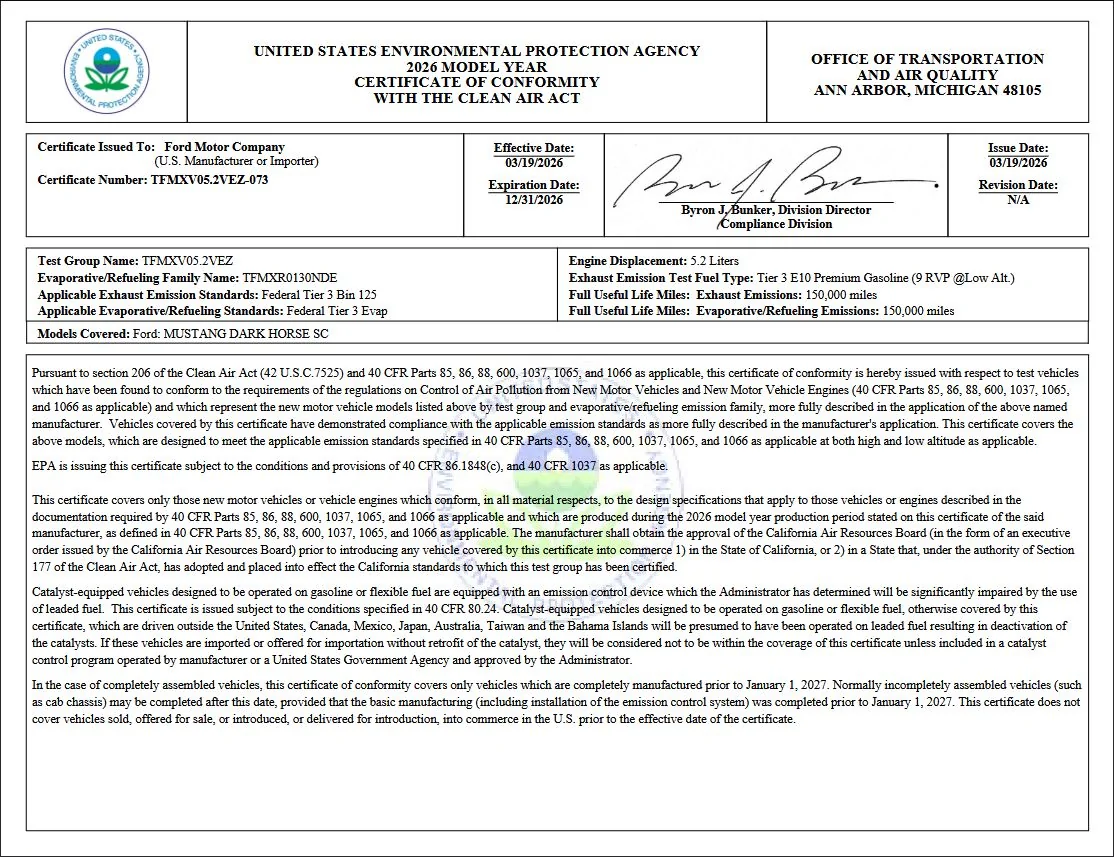

Anyway, the certificate...

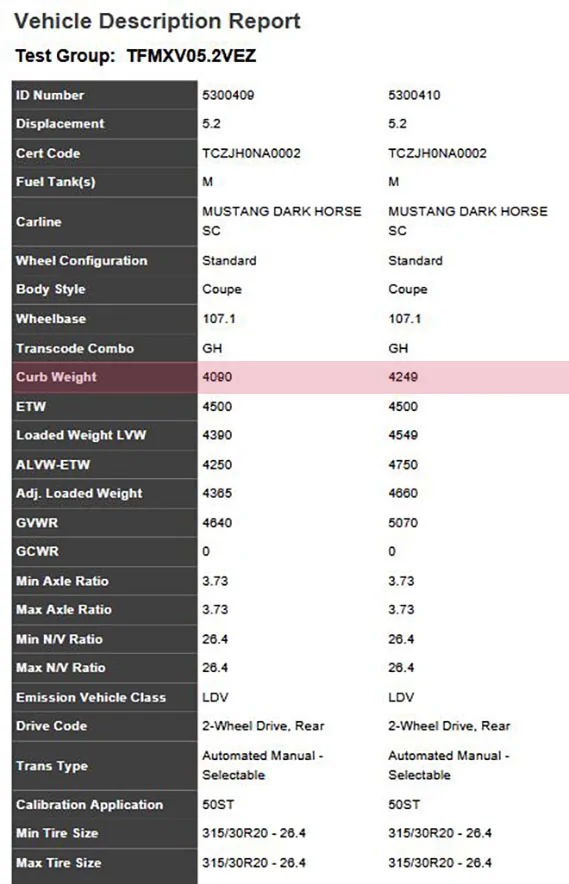

There are two weight listings buried in the EPA cert.
DH SC base - 4,249 pounds
DH SC CF - 4,090 pounds

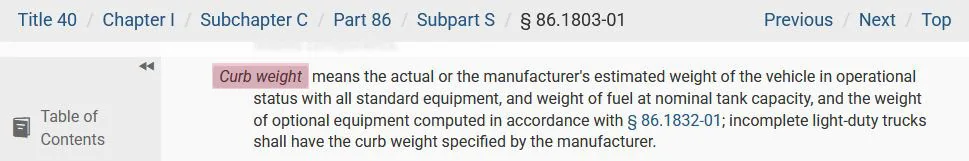

To be clear, the EPA listing is for curb weight. The US government defines curb weight as such...

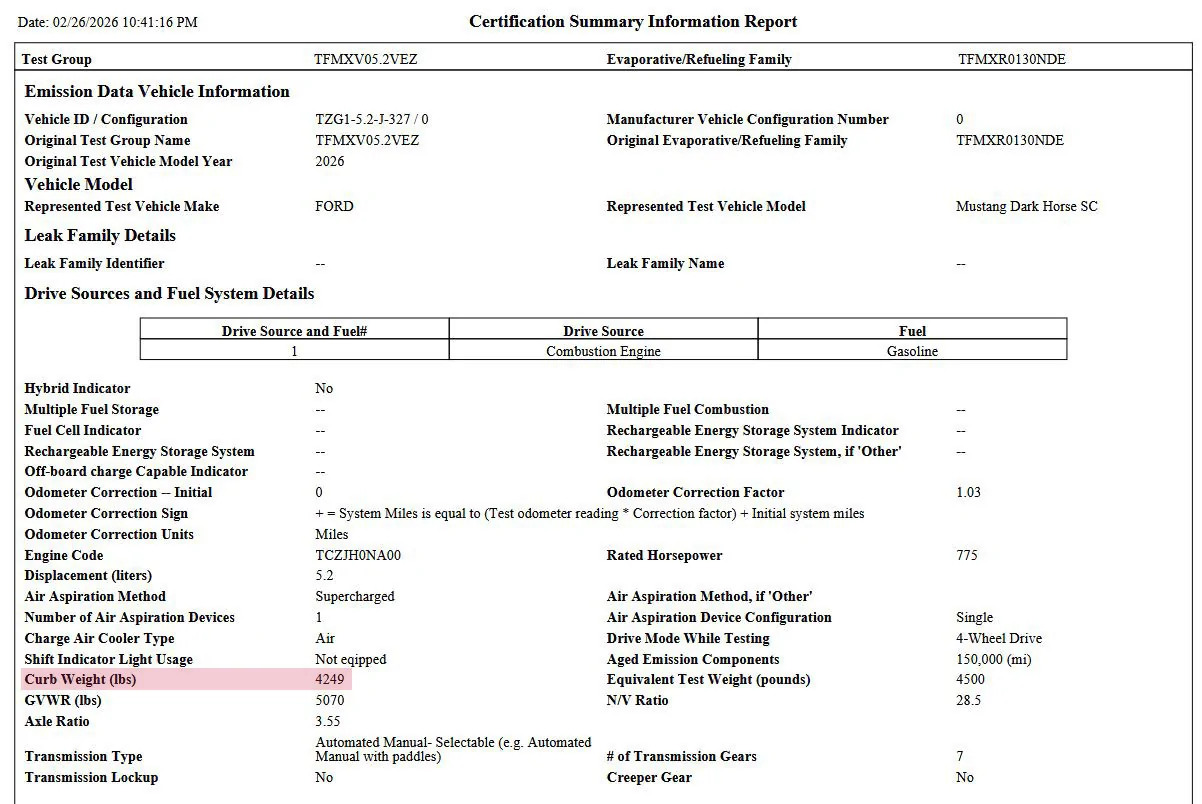

The 16.1 gallon tank equates to about 100lbs if you want to do the math and dry weight is what you are looking for. To be clear about something else as some will look up the certificate and see 4WD in some of the test data, that means it just happened to be tested on a 4WD dyno. You'll see that in the following snippet where is says "drive mode while testing" in the bottom right hand column. Also not that the horsepower listed is incorrect. That number often changes from the initial application and any subsequent revisions made down the road.

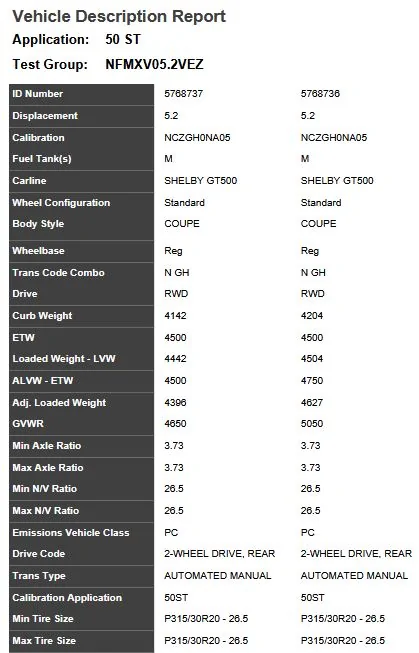

Weights are very close to that of the recent GT500 base and CFTP cars.
So for the past few months I would look at the EPA (CARB as well) site for the application/certification and it wouldn't populate. The 5.2 engine group for the GTD and the Raptor R were there but no DH SC. That got boring so I filed a FOIA request with the EPA for the certificate as well as any and all related data.
The request forced them to cough up that which they weren't ready to share as federal law makes it clear they have to address the request in a "timely" manner. I wanted them to have to share the cert with me and watch it show up on the EPA site but my request will now likely take quite a while. Friends and politicians like to dole out difficulty at times but no biggie - I'm happy they finally had to post it up.
Anyway, the certificate...
There are two weight listings buried in the EPA cert.
DH SC base - 4,249 pounds
DH SC CF - 4,090 pounds
To be clear, the EPA listing is for curb weight. The US government defines curb weight as such...
The 16.1 gallon tank equates to about 100lbs if you want to do the math and dry weight is what you are looking for. To be clear about something else as some will look up the certificate and see 4WD in some of the test data, that means it just happened to be tested on a 4WD dyno. You'll see that in the following snippet where is says "drive mode while testing" in the bottom right hand column. Also not that the horsepower listed is incorrect. That number often changes from the initial application and any subsequent revisions made down the road.
Weights are very close to that of the recent GT500 base and CFTP cars.
